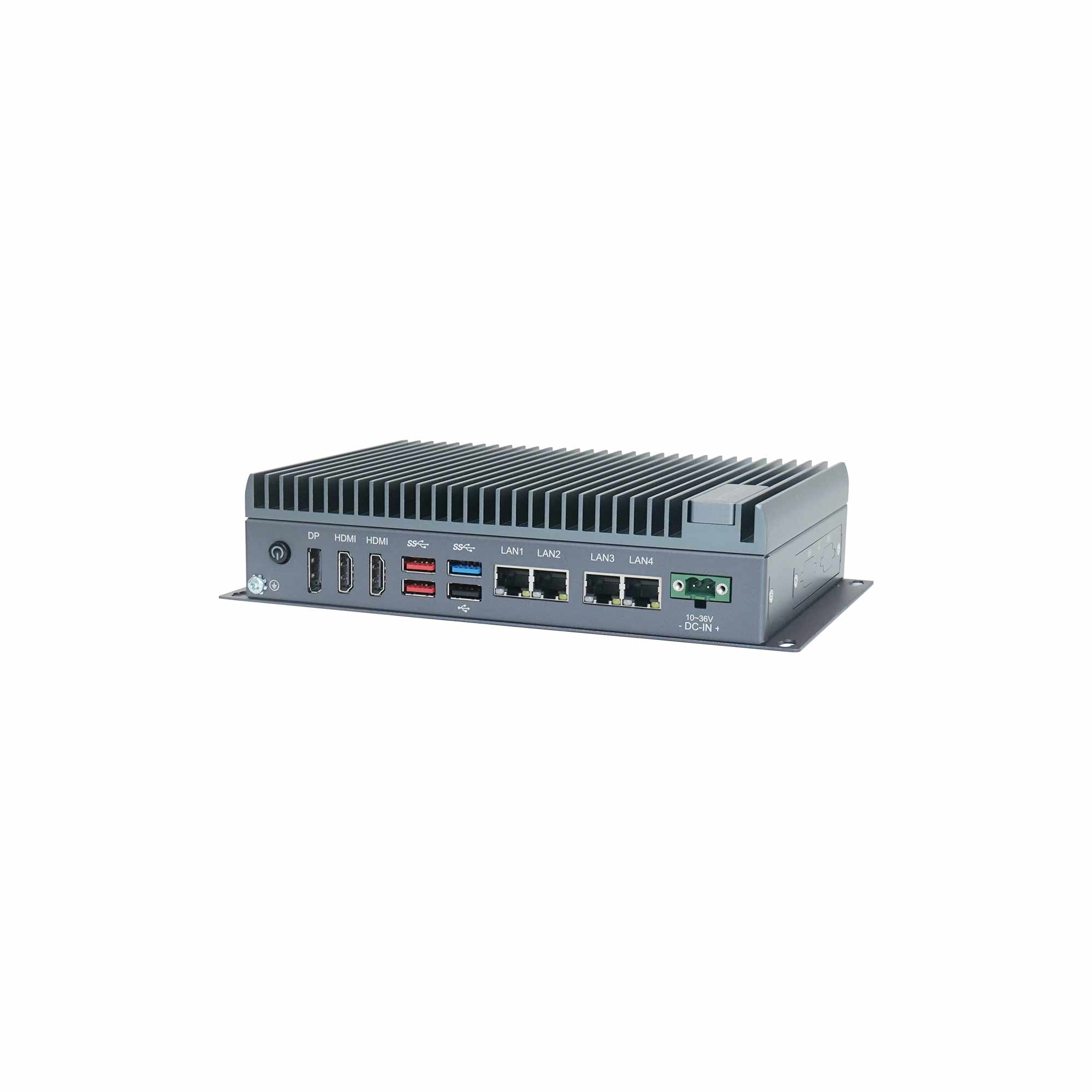

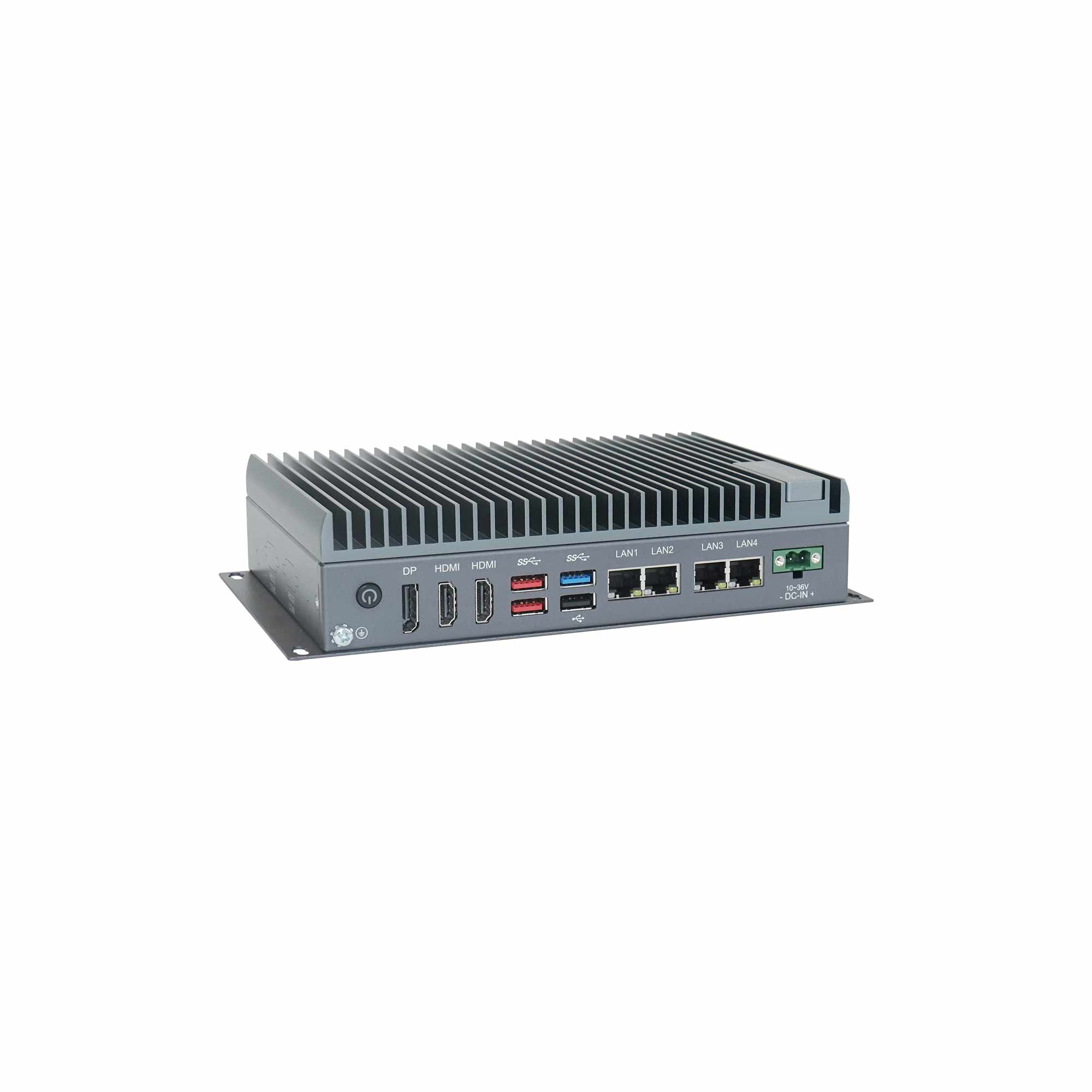

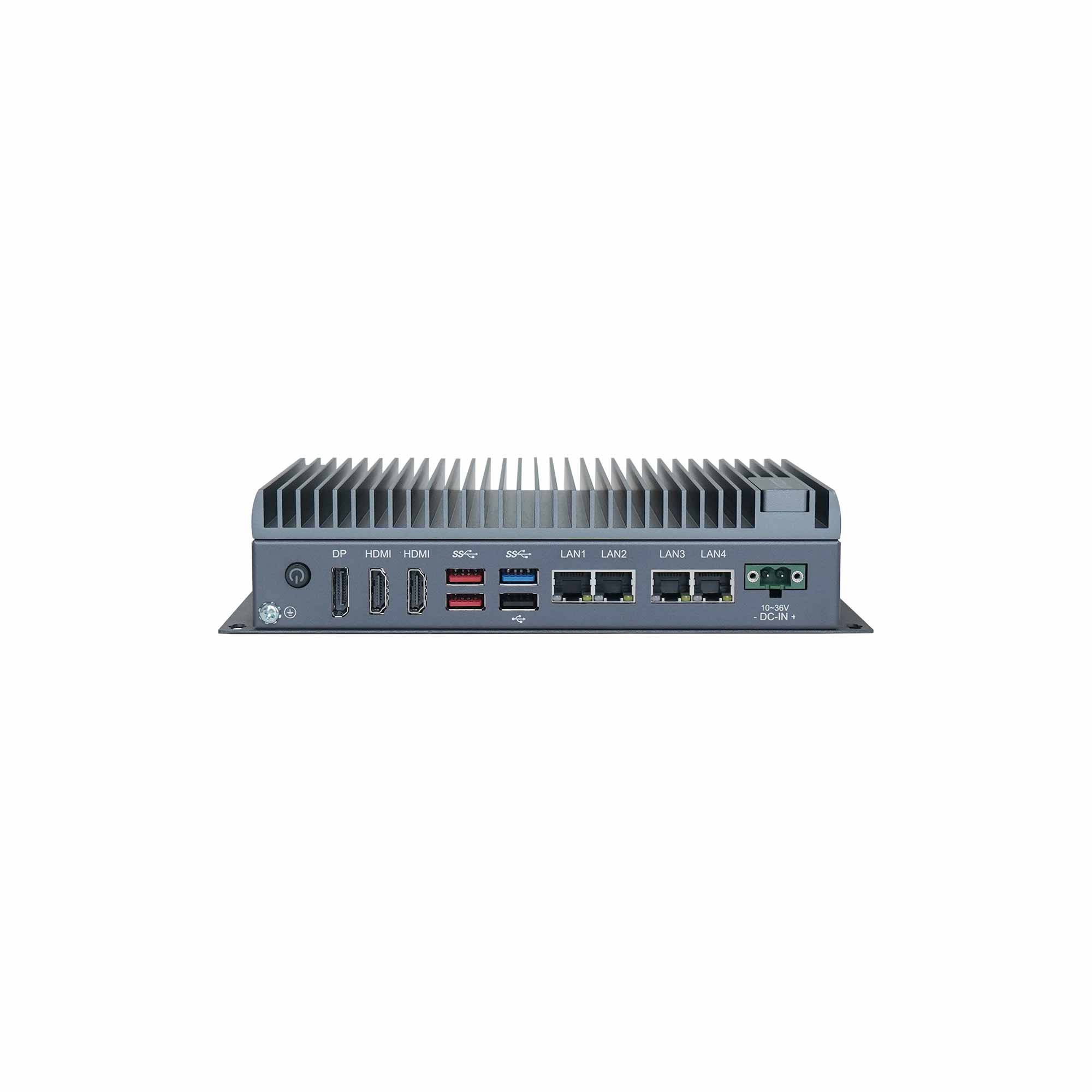

嵌入式工業電腦 CES-R11X-W44A

Intel^? Tiger lake i3-1115G4 3.0G(6M Cache,up to 4.1GHz)
Intel^? Tiger lake i5-1135G7 2.4G(8M Cache,up to 4.2GHz)
Intel^? Tiger lake i5-1145GRE 1.5G(8M Cache,up to 4.1GHz)
Intel^? Tiger lake i7-1165G7 2.8G(8M Cache,up to 4.7GHz)
支持1 x SO-DIMM DDR4-3200，最大支持32GB
支持4個千兆網絡
支持DP/HDMI 擴展同步于/異步顯示/3顯
支持M.2 SSD，M.2 WiFi, Mini-PCIe
10~36VDC

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

采用11代 Intel? Tiger lake i3/i5/17

系統 System

處理器 Processor	Intel^? Tiger lake i3-1115G4 3.0G(6M Cache,up to 4.1GHz) Intel^? Tiger lake i5-1135G7 2.4G(8M Cache,up to 4.2GHz) Intel^? Tiger lake i5-1145GRE 1.5G(8M Cache,up to 4.1GHz) Intel^? Tiger lakeI7-1165G7 2.8G(8M Cache,up to 4.7GHz)
內存 Memory	1 x SDRAM DDR4 3200 MHz (max. 32G)
圖形 Graphics	Intel^? Iris^? Xe graphics, up to 96 graphics execution units (EU)
存儲 Storage	1 x M.2 2242 1 x Sata 3.1(2.5 寸硬盤)
操作系統 OS	Windows 10, Ubuntu20.04
看門狗定時器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

網口 Ethernet	1 x RJ45 Intel i219LM GbE (10/100/1000 Mbps) 3 x RJ45, Intel^? i210 GbE (10/100/1000 Mbps)【Colay 1211GbE】
顯示 Video	2 x HDMI, up to 4K x 2K x 24bpp@24Hz 1 x DP, up to 4096 x 2304 x 36bpp@60Hz
音頻 Audio	1 x Audio(Line-out & Mic-in ) ( 芯片888S/897)

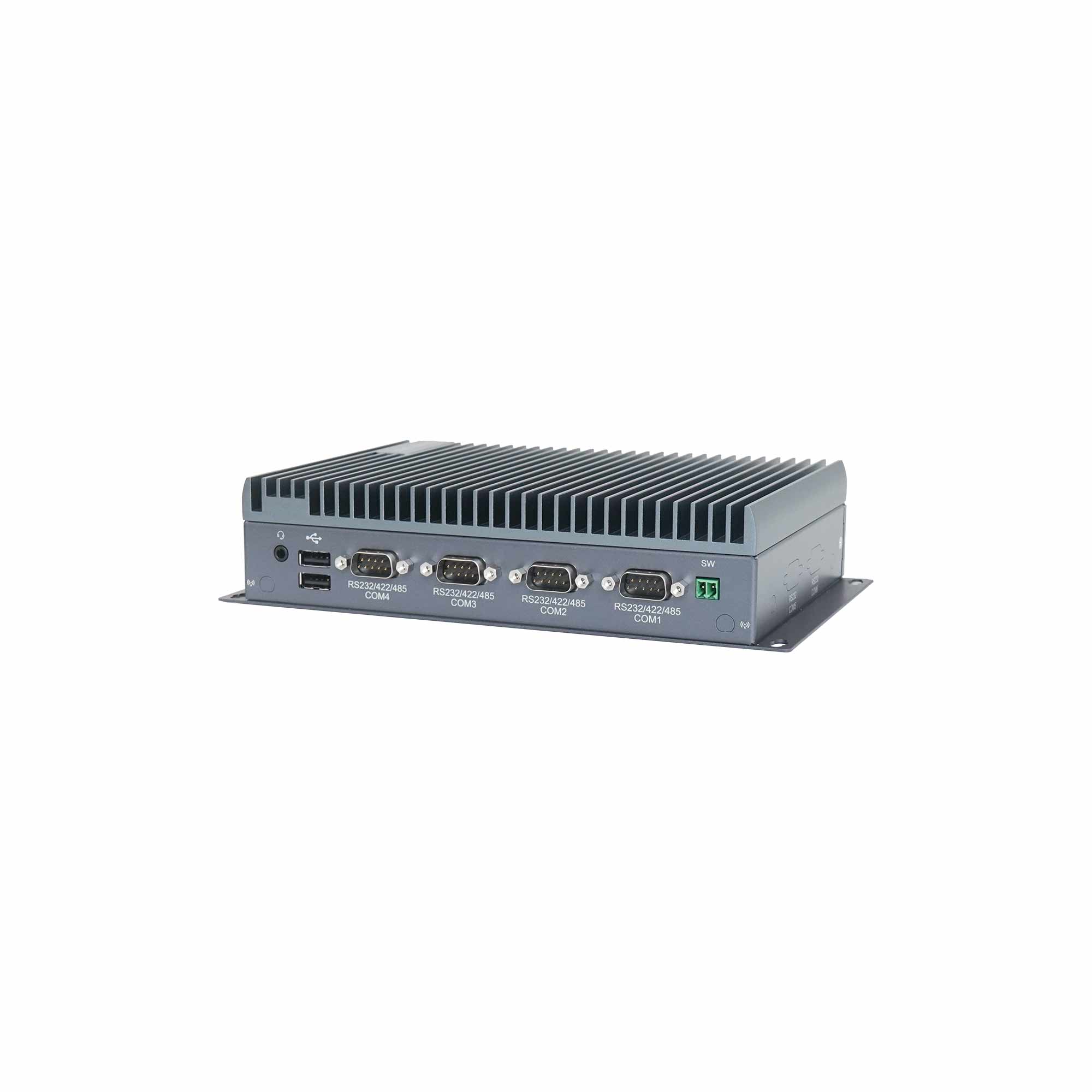

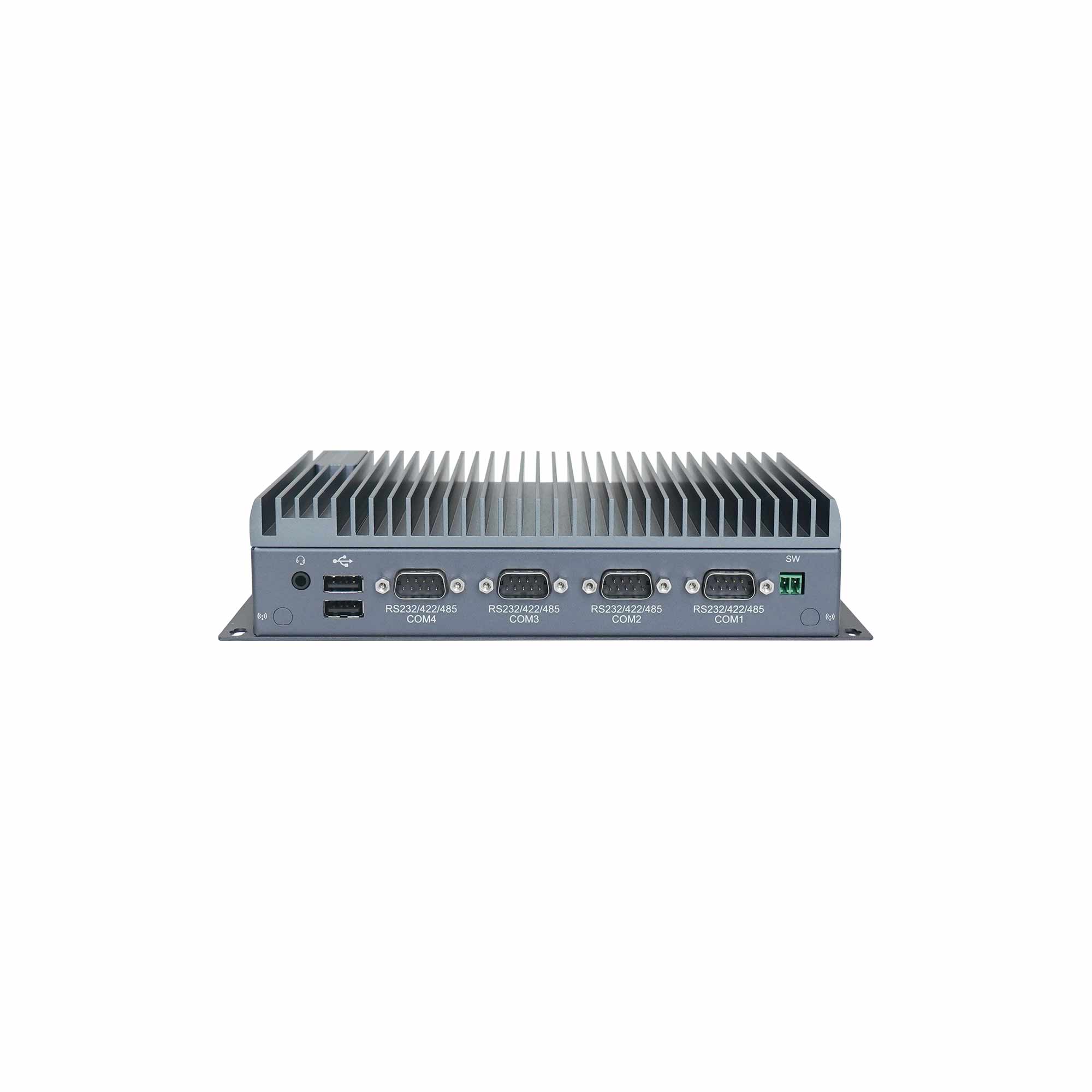

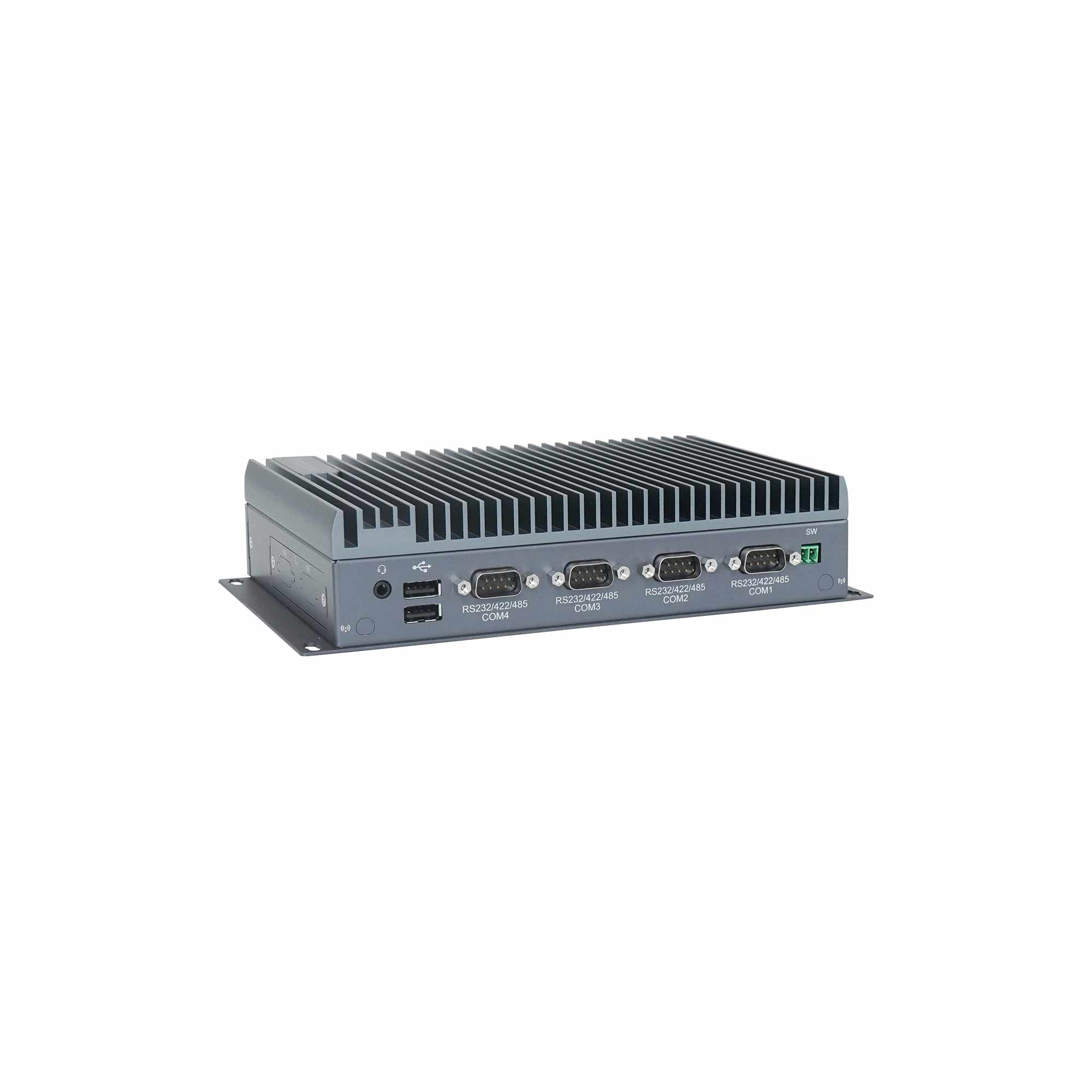

串口 COM	4 x RS-232/422/485 (default RS-232) with auto flow control
USB	3 x USB3.2 Gen. 2 3 x USB2.0
按鈕 Button	1 x Power button W/Led
遠程開關 Remote ON-OFF	1 x SW LED

內部接口 Internal I/O

擴展接口 Expansion	1 x E-Key M.2 2230 slot (PCIe X1 / USB2.0 signal supported) 1 x mPCIe (PCIe/ USB2.0/USB 3.0 signal supported)
GPIO	1 x 8bit programmable GPIO pin header【3.3 \| 5V Jump adjustable】
SIM 卡	1 x SIM Card socket for 3G/4G module
USB	2 x USB 2.0 by Pinhead
串口	2 x COM232 by Pinhead

環境 Environmental

操作溫度 OperatingTemp.	-20℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD)
存儲溫度 Storage Temp.	-40℃ ~ 85℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
振動 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
機械沖擊 Shock	Operation: 10G@11ms Non-operation: 30G@11ms

電源 Power

電源輸入 Power Input

10~36VDC, 2-pin phoenix connector

機構Mechanical

外觀 Housing	鋁合金 Aluminum Alloy
安裝方式 Mounting	Desk-Mount, Wall-Mount, DIN-Rail(optional) VESA-mount (75 x 75mm, 100 x 100mm optional)
尺寸 Dimension	224 x 140 x 49.2 mm
重量 Weight	1.6 kg
