嵌入式工業電腦 CES-EQ47-DXXX

采用Core ? i /Celeron^?processor系列LGA1200處理器，搭載Q470E芯片組
雙通道DDR4 2666/2933, 最大支持64GB
2個千兆網口
VGA, HDMI異步雙顯
2 x 2.5寸HDD/SSD支架
1 x Mini-PCIe, 1 x M.2 2230 WiFi卡槽及1 x M.2 2242擴展槽
PCIe X16, PCIe X1及PCI擴展插槽
標準19-24V DC電源輸入

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

采用Core ? i /Celeron?processor系列LGA1200處理器，搭載Q470E芯片組

系統 System

芯片組 Chipset	Q470E chipset
內存 Memory	DDR4 2666/2933, 2 x SO-DIMM Slot, (up to 32GB per socket)
圖形 Graphics	Core i: Intel^?HD Graphics 630, 支持DirectX 12 Pentium/Celeron: Intel^?HD Graphics 610, 支持DirectX 12
存儲 Storage	2 x 2.5" SATA 3.0 HDD/SSD Bay，Raid 0/1 1 x M.2 2242 SSD slot 1 x mSata 1 x M.2 2280 SSD slot[1]
操作系統 OS	Windows 10, Ubuntu20.04
看門狗定時器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

網口 Ethernet	1 x Intel^? I219-LM（10/100/1000 Mbps） 1 x Intel^? i226-V (10/100/1000/2500 Mbps) 2 x Intel^? I210AT（10/100/1000 Mbps)[1]
顯示 Video	1 x HDMI: 最大分辨率4096x2160@ 24Hz 1 x VGA: 最大分辨率1920 x 1200@ 60Hz 1 x DP(optional by internal pin head )

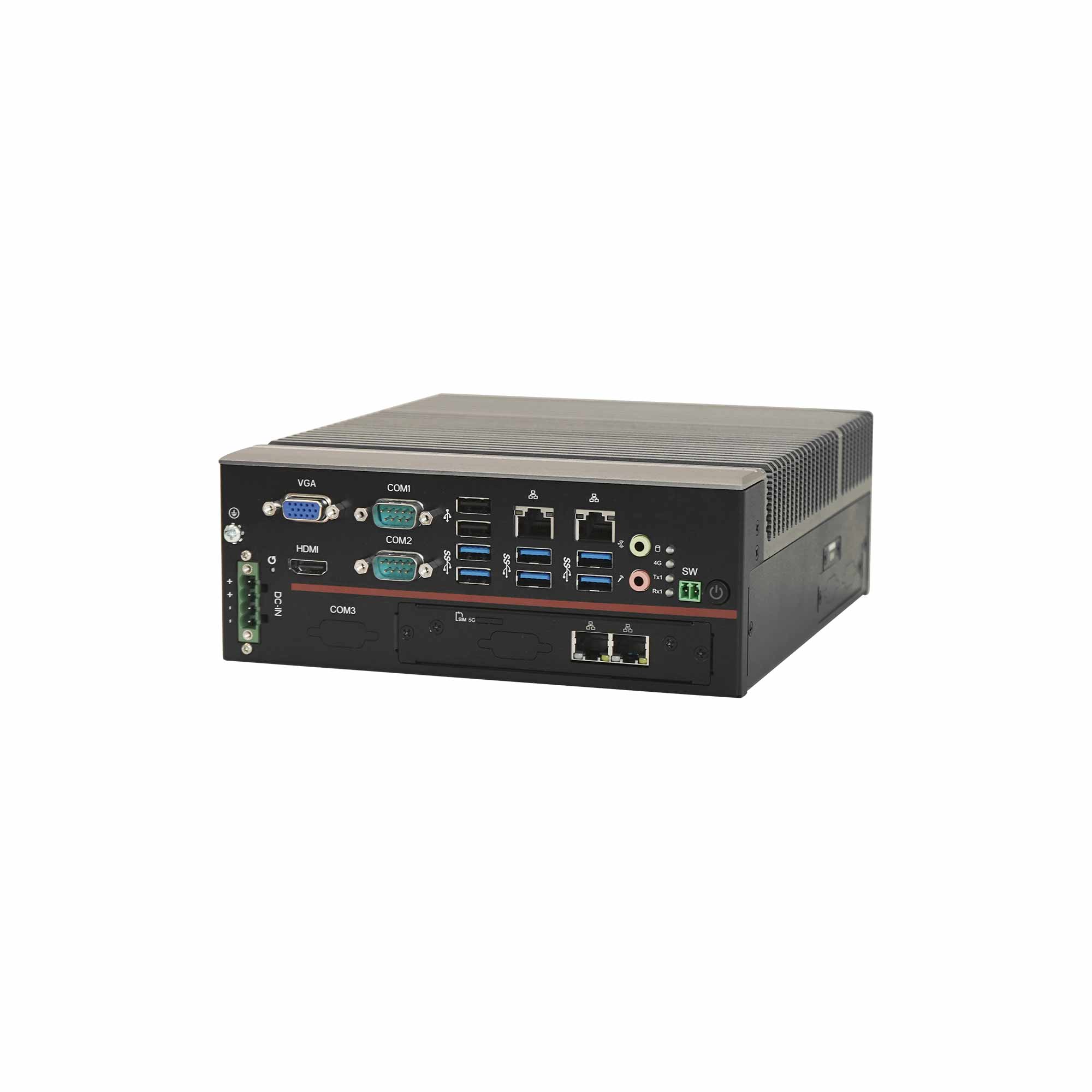

POE	4 x Intel^? I210AT GbE (10/100/1000Mbps)[2] 802.3 af, max TDP 15W for each
音頻 Audio	1 x Audio(Line-out & Mic-in ) ( 芯片888S/897)
串口 COM	2 x RS-232/422/485 (default RS-232) with auto flow control 4 x RS232 (optional by internal pin head )
USB	6 x USB3.1 2 x USB3.0 (optional by internal pin head ) 2 x USB2.0 1 x USB3.0 加密狗

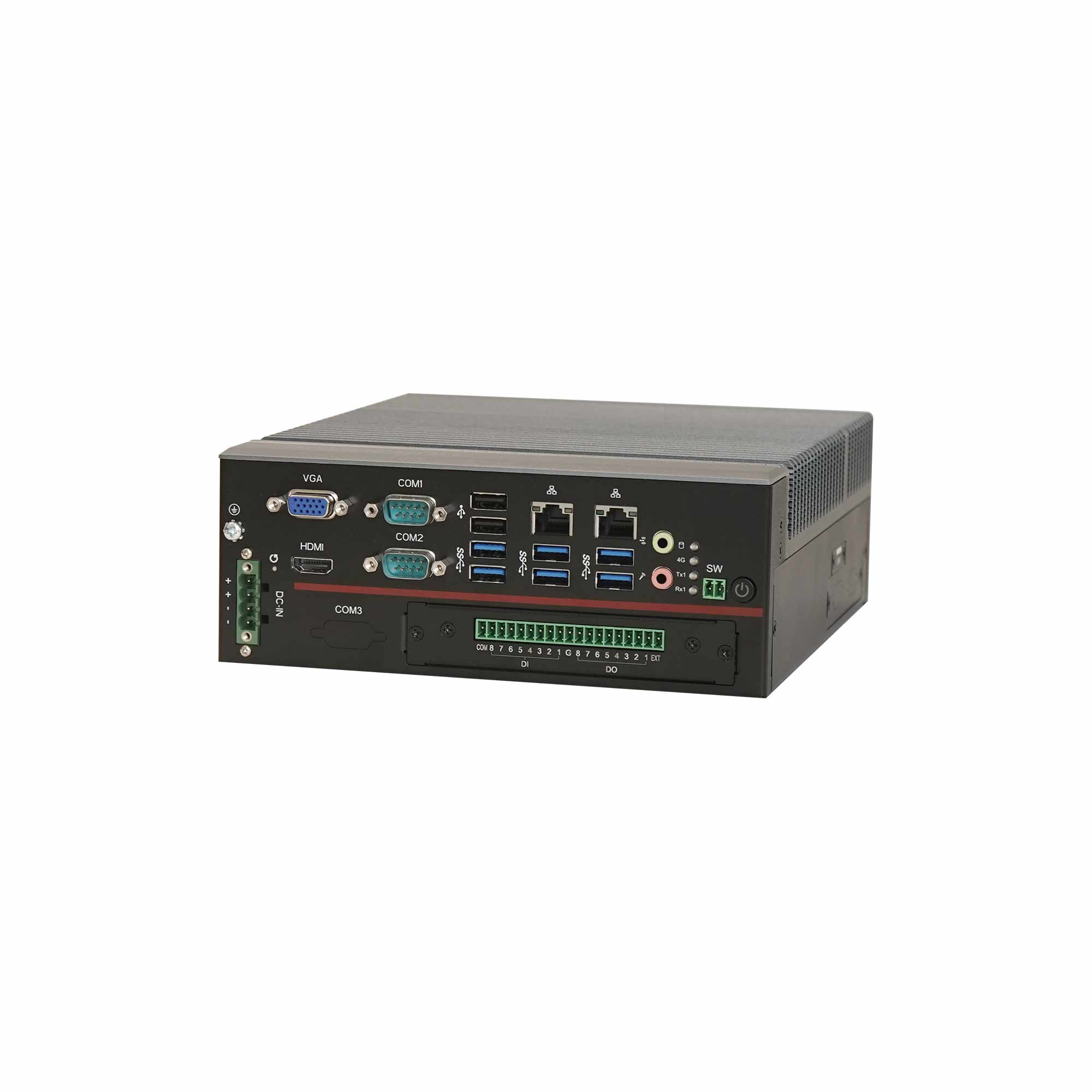

GPIO	1 x 16bit programmable GPIO (default 3.3V, 5V optional)(optional by internal pin head )
按鈕 Button	1 x Power button, 1 x Reset button
指示燈 LED	1 x HDD LED 1 x 4G Led 2 x COM1 LED for Rx1 and Tx1
遠程開關 Remote ON-OFF	1 x Remote ON-OFF

內部接口 Internal I/O

擴展接口 Expansion	1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported) 1 x E-Key M.2 2230 slot (PCIe signal supported) 1 x M-Key SATA M.2 2242 SSD slot(SATA signal supported) 1 x M-Key 2280 NVMe(PCIe x4 Gen.4 for PCIe SSD), optional SATA[1] 1 x B-Key 3052 slot (USB3.0 signal supported) w/ Nano-SIM[1]
SIM 卡	1 x SIM Card socket for 3G/4G module 1 x SIM Card socket for 5G module[1]

環境 Environmental

操作溫度 OperatingTemp.	-10℃ ~ 40℃ with 0.7m/s air flow (with 65W CPU and industrial SSD)[3] -10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD)[3] 0℃ ~ 30℃ with 0.7 m/s air flow (HDD)
存儲溫度 Storage Temp.	-40℃ ~ 85℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
振動 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
機械沖擊 Shock	Operation: 10G@11ms Non-operation: 30G@11ms

電源 Power

電源輸入 Power Input

19-24V DC, 4-pin phoenix connector

機構Mechanical

外觀 Housing	鋁合金 Aluminum Alloy
安裝方式 Mounting	桌面式 (Desk-Mount), 壁掛式 (Wall-Mount)

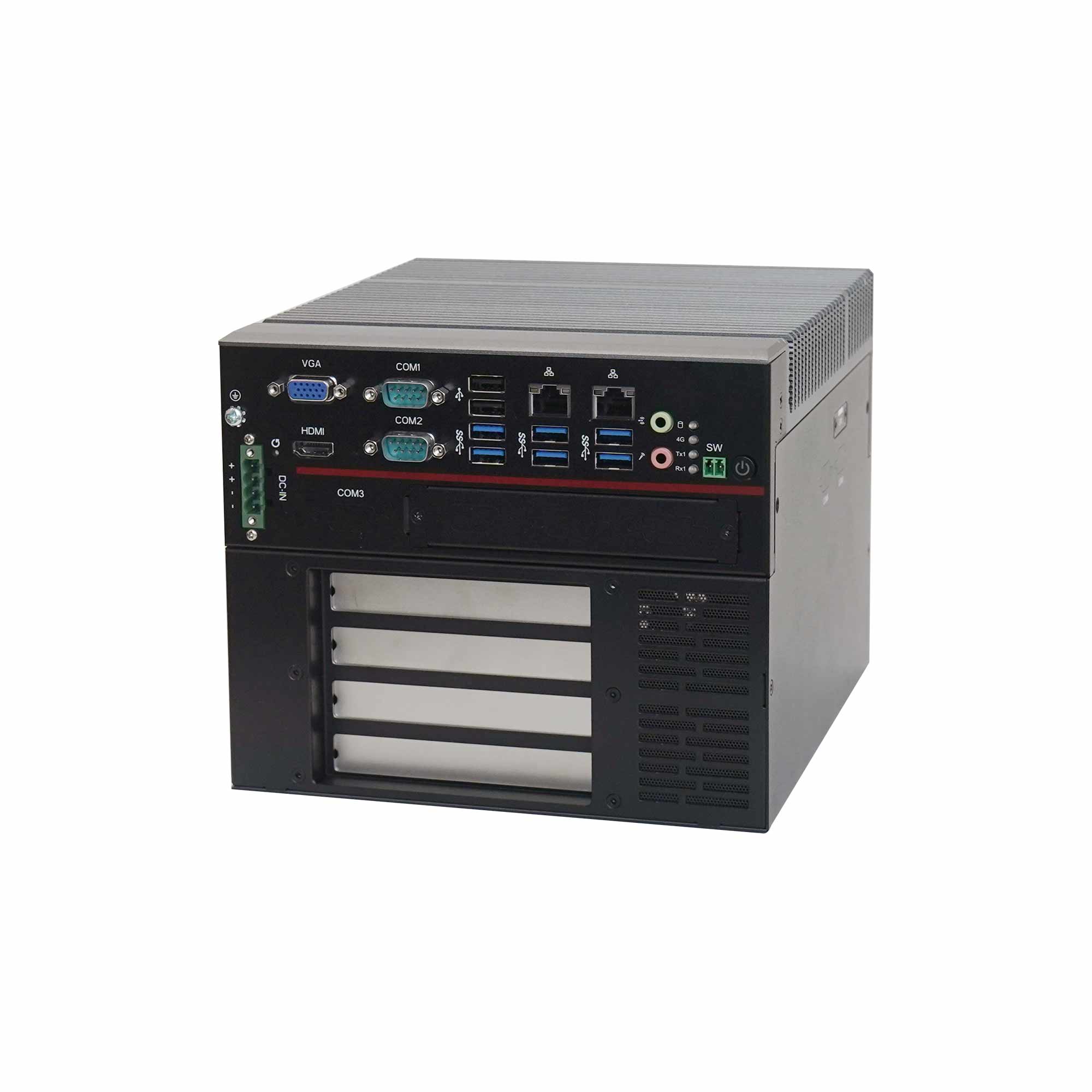

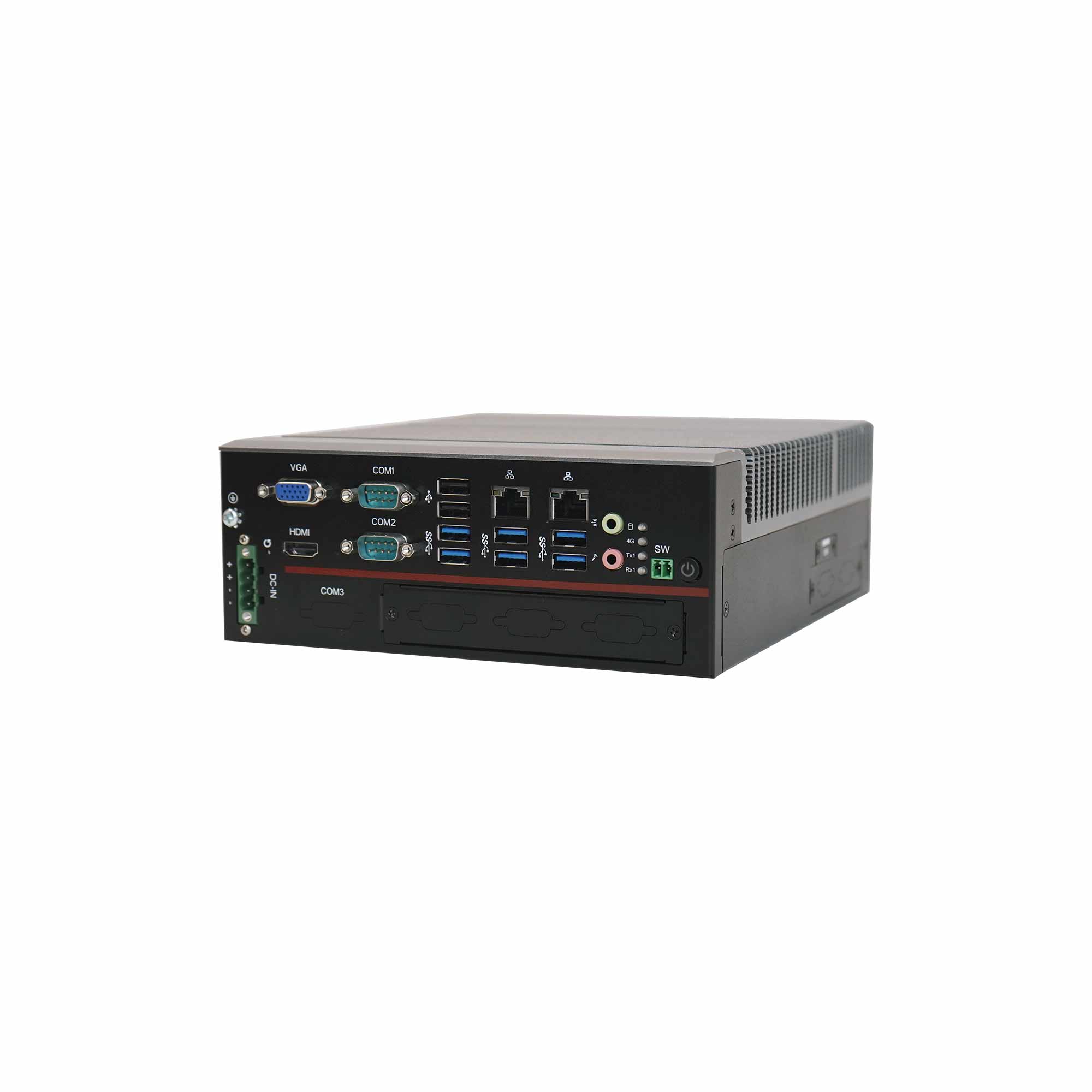

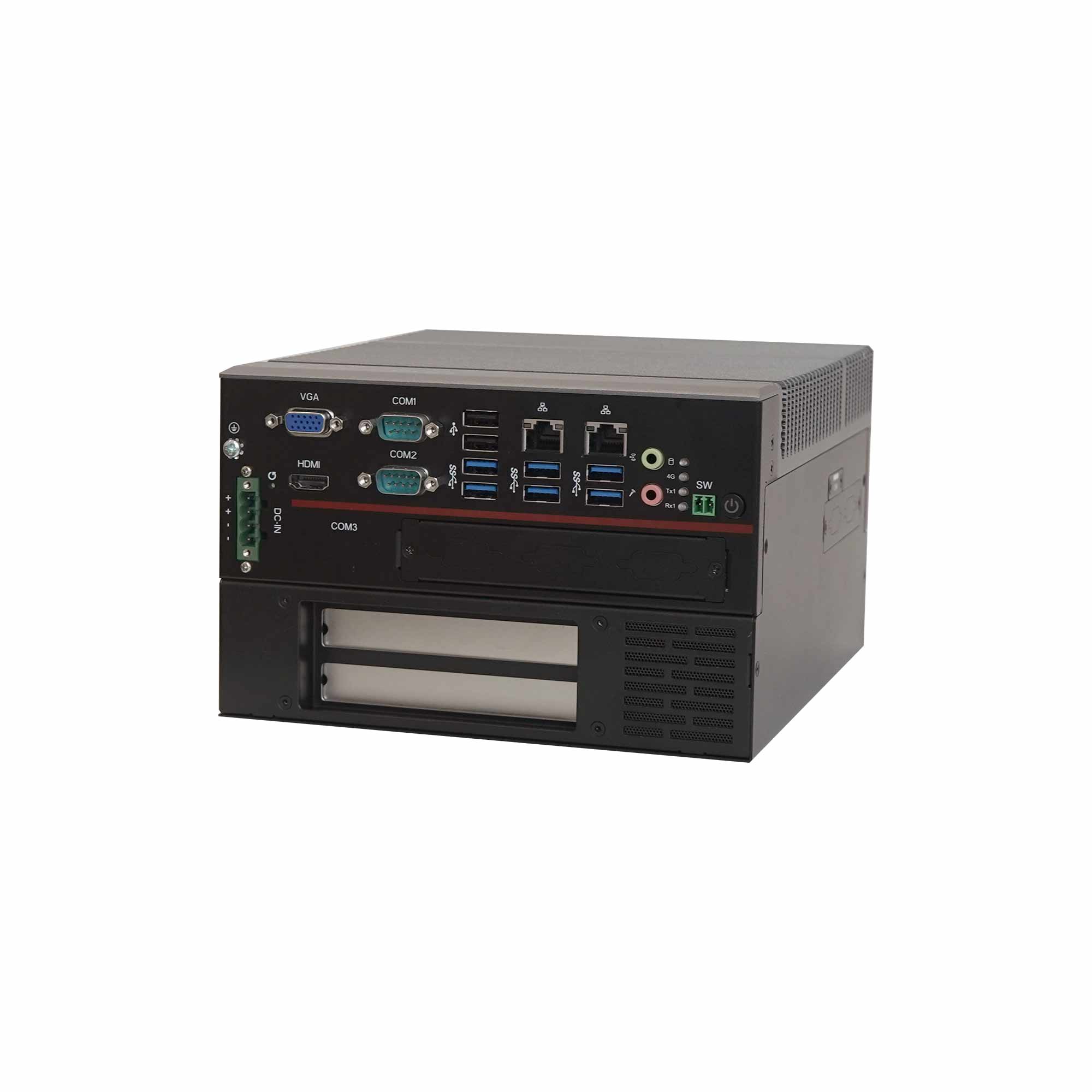

尺寸 Dimension	CES-EQ47-D220: 200 x 230 x 78 mm CES-EQ47-D222: 200 x 230 x 129 mm CES-EQ47-D224: 200 x 230 x 169 mm
重量 Weight	CES-EQ47-D220: 3.5kg CES-EQ47-D222: 3.95kg CES-EQ47-D224: 4.15kg
