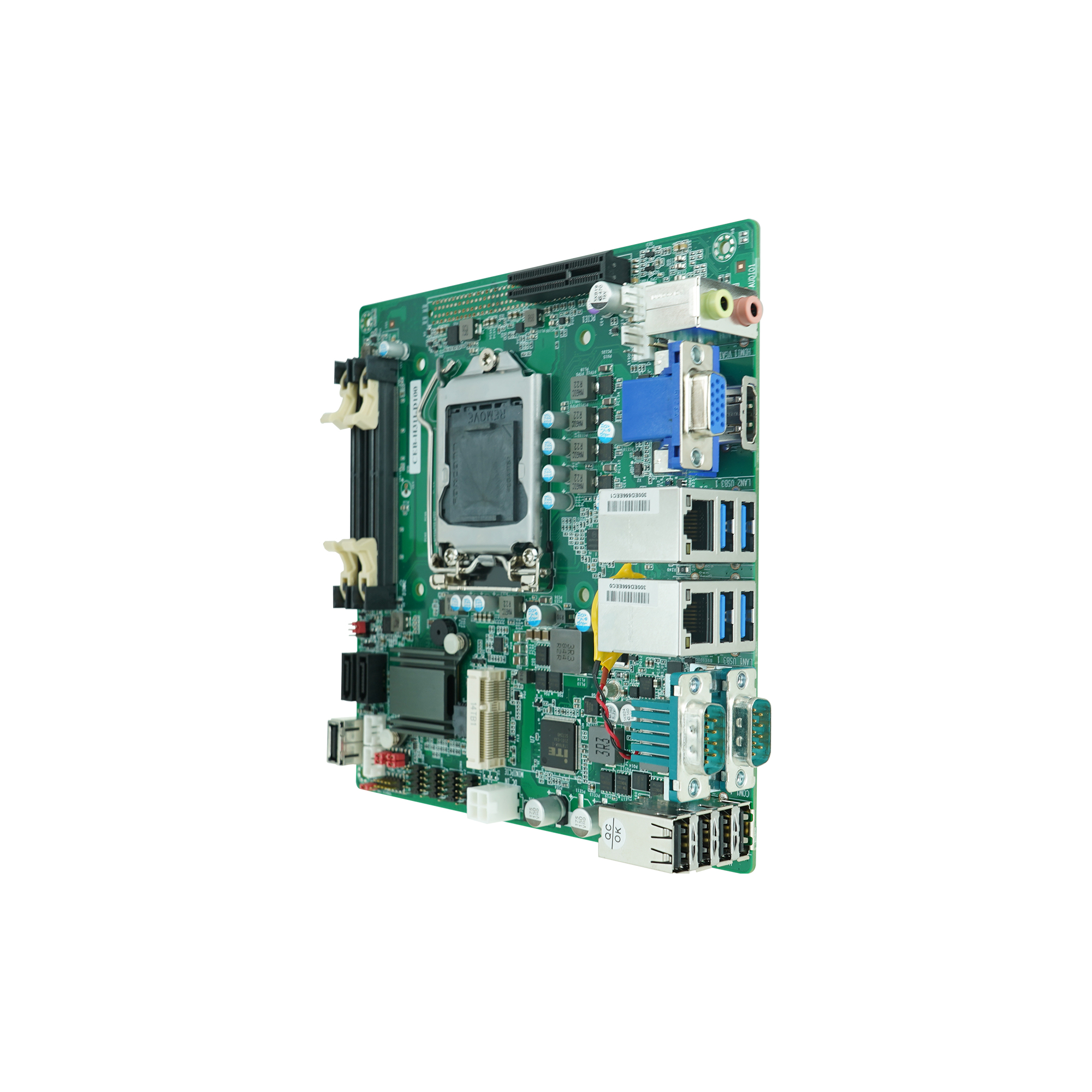

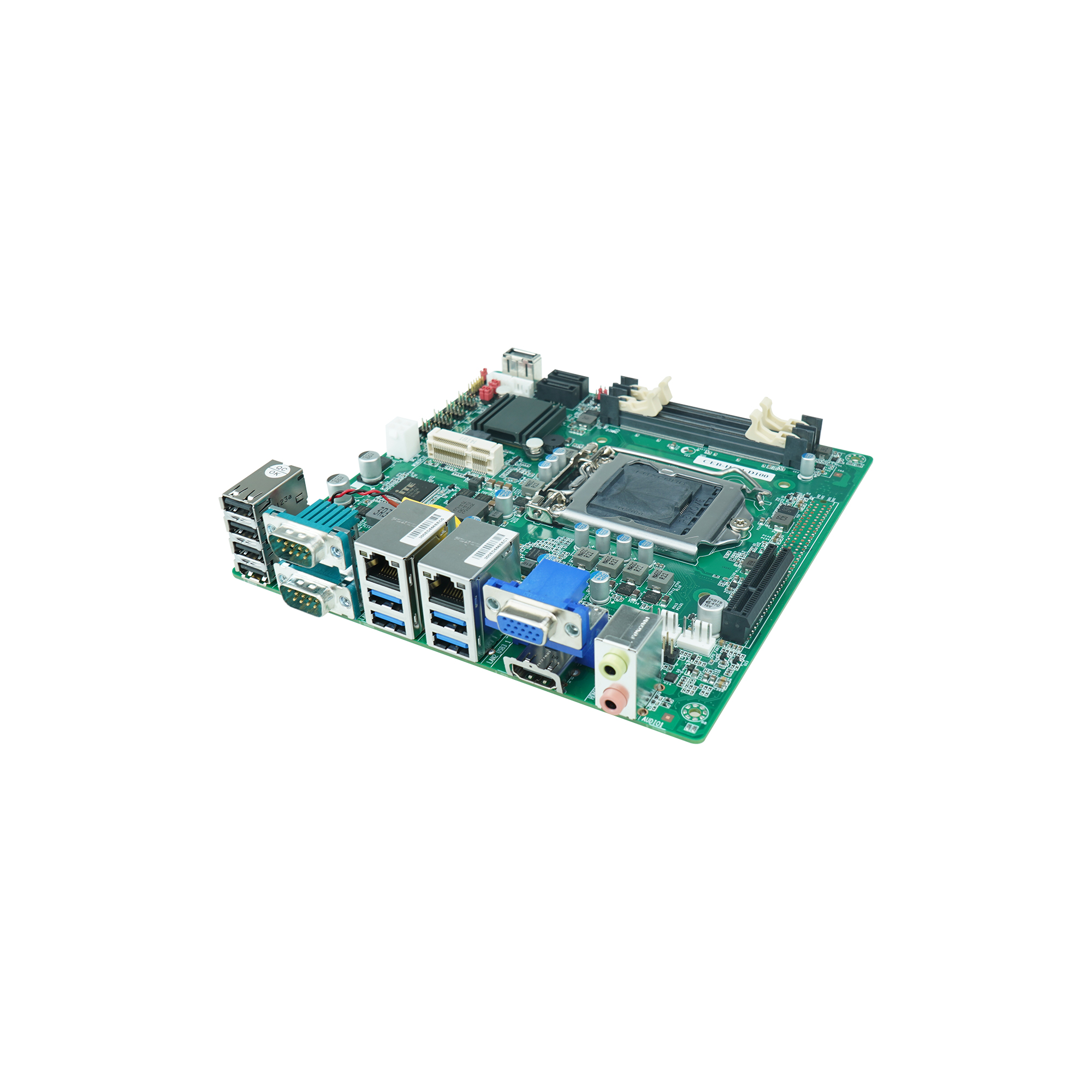

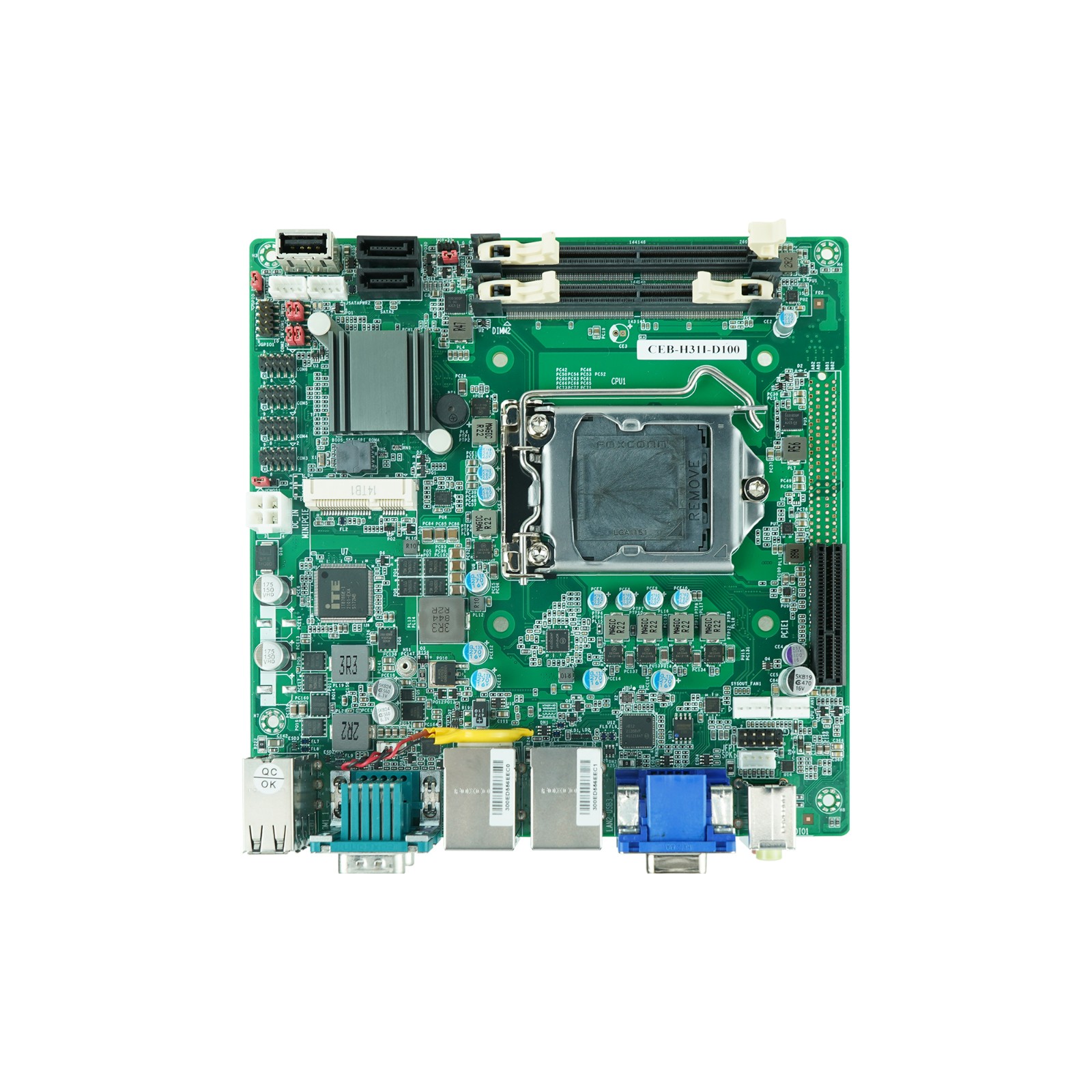

Mini-ITX工業主板 CEB-H31I-D100

采用H110芯片組
支持Intel^{^?} 6th/7th Gen. CoreTM i3/i5/i7、Pentium^{^?}、Celeron^{^?} Processor, LGA1151
支持2個DDR4 SO-DIMM內存, 最大可支持32GB
支持HDMI/VGA雙顯
支持千兆網口、10 x COM、9 x USB
支持Mini-PCIe、M.2、PCIe X 4
支持SIM卡安裝
12V DC-IN輸入
內置一顆直立USB2.0接口

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

Intel? 6th/7th Gen. Core ? i3/i5/i7, Pentium?, Celeron? Processor, LGA1151 Socket, TDP up to 65W

處理器 Processor	Intel^? 6th/7th Gen. Core ? i3/i5/i7, Pentium^?, Celeron^? Processor, LGA1151 Socket, TDP up to 65W
芯片組 Chipset	Intel^? H110
內存 Memory	Dual Channel, 2 x SO-DIMM Slot, DDR4 1866/2133/2400MHz, up to 32GB
存儲 Storage	2 x SATA3.0, 1 x M.2 2242 (SATA)
顯示 Display	Intel^? HD Graphics
網口 Ethernet	2 x RJ45 Realtek 8111H GbE (10/100/1000 Mbps)
音頻 Audio	Realtek^? ALC269Q HD Audio Codec
BIOS	AMI UEFI BIOS

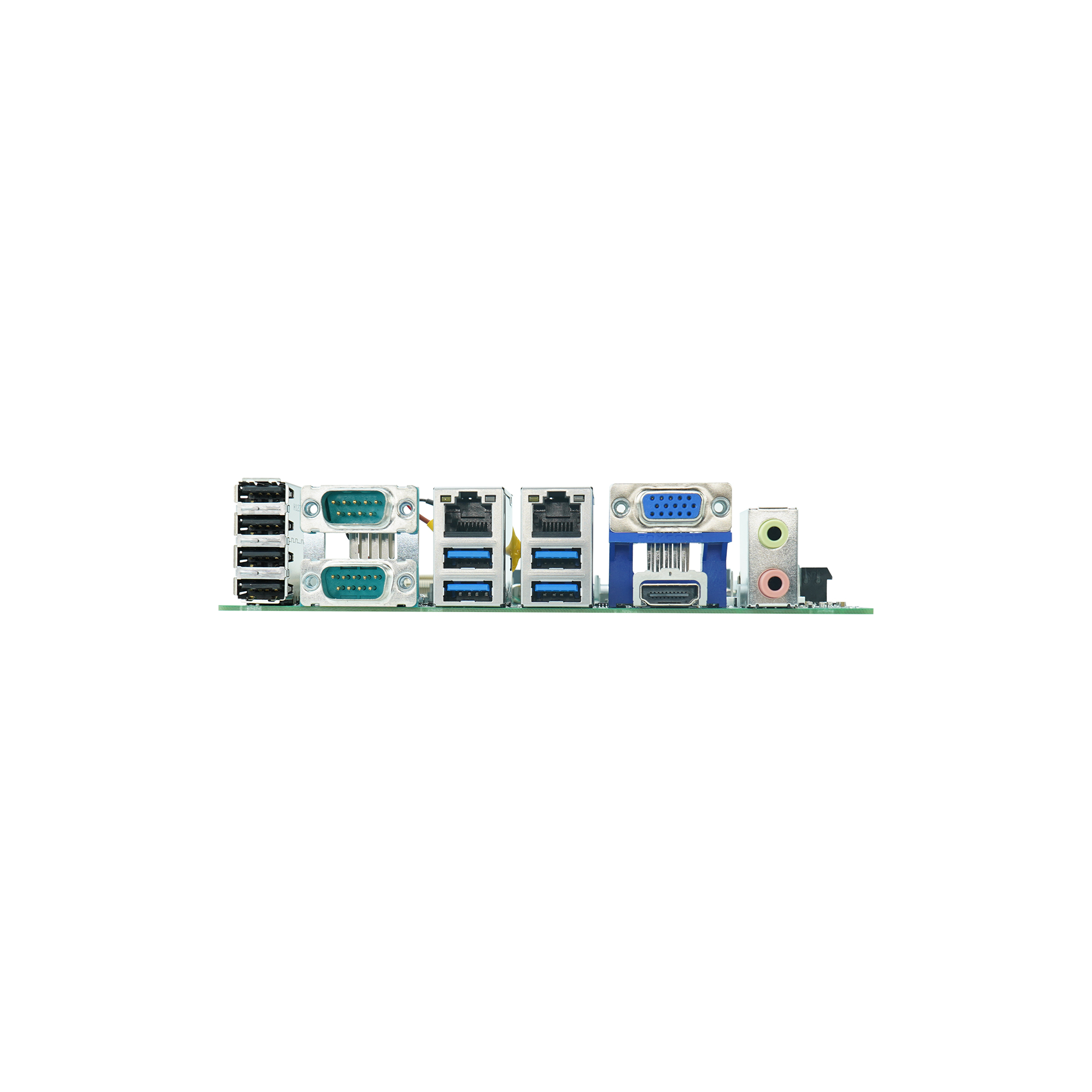

外部接口 Rear I/O	1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 4 x USB2.0, 4 x USB3.0 2 x RJ45 2 x RS232 1 x Line-in, 1 x Line-out, 1 x Mic-in
內部接口 Internal I/O	1 x LVDS: max resolution up to 1920 x 1200@60Hz 1 x USB2.0 (Type-A) 1 x 8 bit GPIO 7 x RS232, 1 x RS232/422/485 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x CPU_Fan, 1 x SYS_Fan
擴展接口 Expansion	1 x Mini-PCIe 1 x PCIe X4 1 x M.2 2242 (SATA)
信賴平臺模塊 TPM	fTPM2.0
環境 Environment	操作溫度 Operation Temp.: 0℃ ~ 60℃ 存儲溫度 Storage Temp.: -40℃ ~ 85℃ 操作濕度 Operation Humidity: 5% ~ 95%, 非凝結狀態 Non-condensing 存儲濕度 Storage Humidity: 5% ~ 95%, 非凝結狀態 Non-condensing
電源輸入 Power Input	12V DC-IN
尺寸 Dimensions	Mini-ITX (170 x 170mm)
操作系統 OS	6th Gen CPU : Windows7/8/10, Linux 7th Gen CPU : Windows10, Linux
