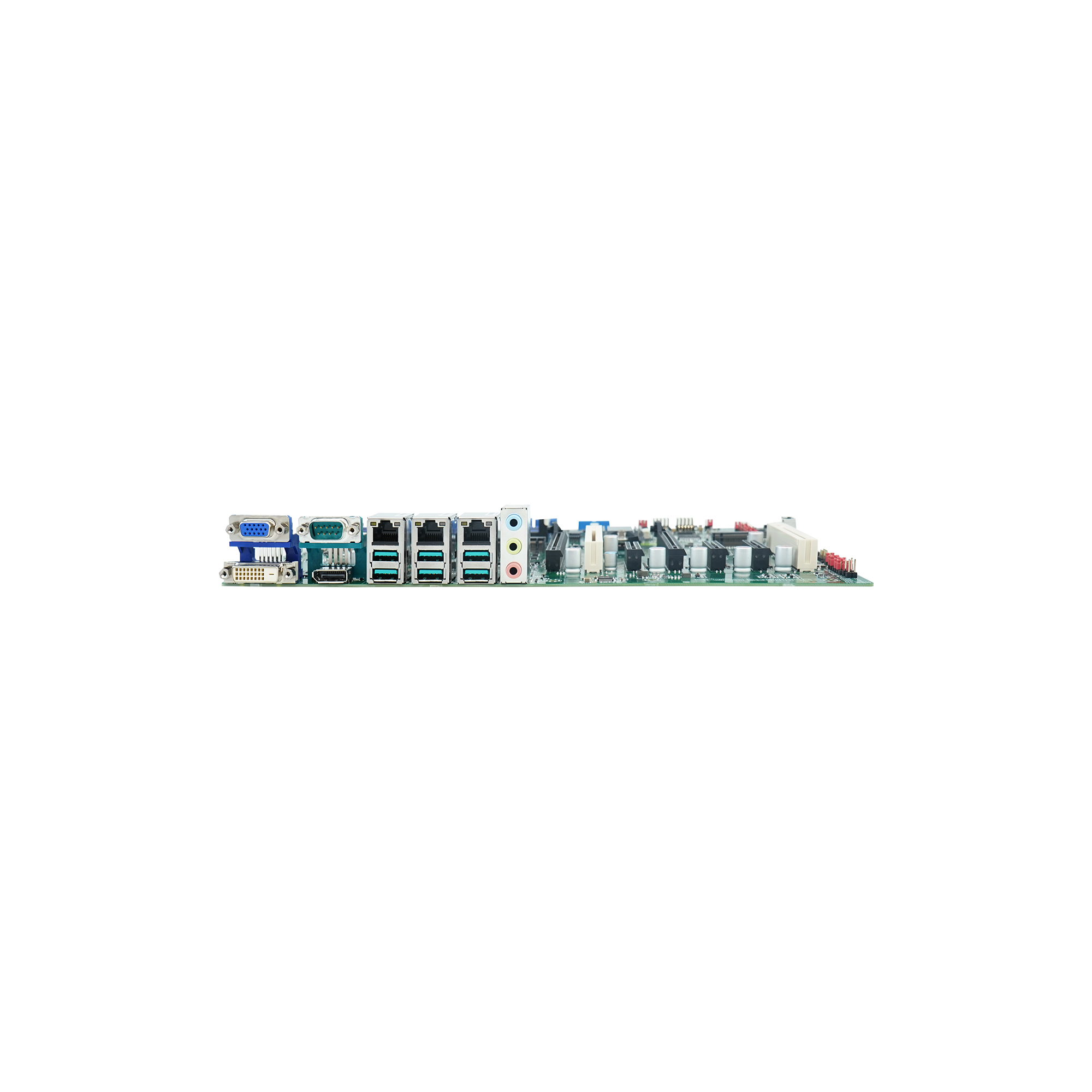

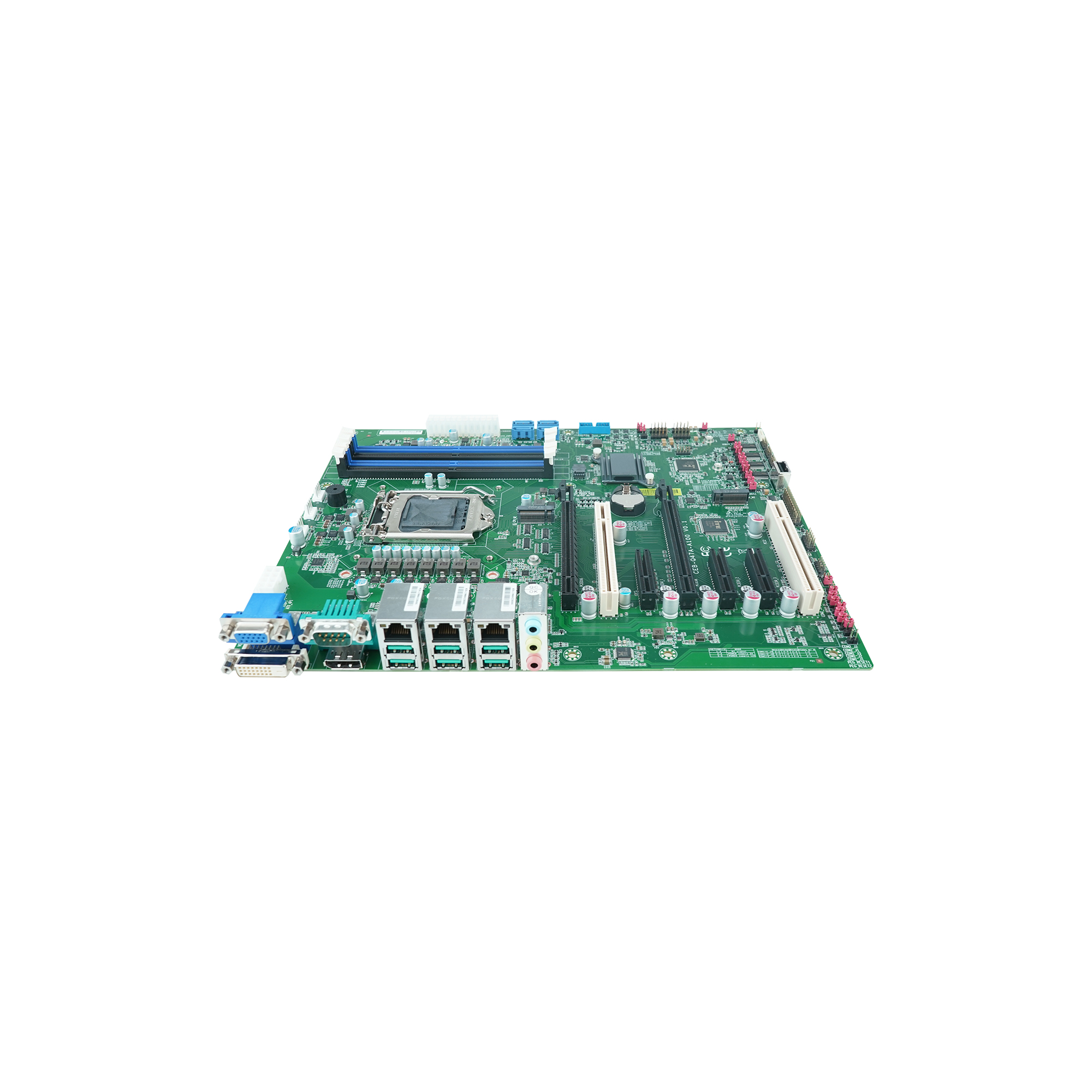

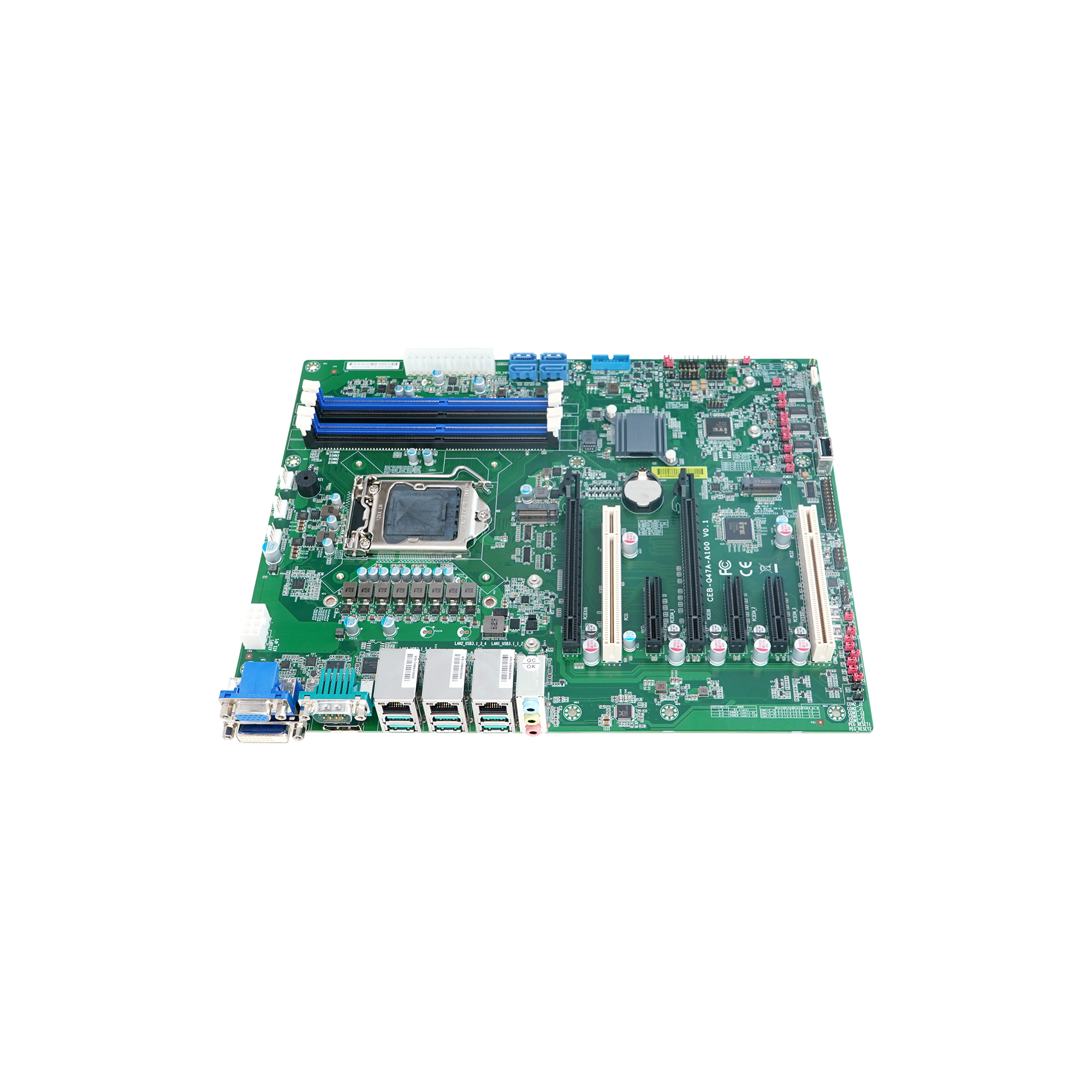

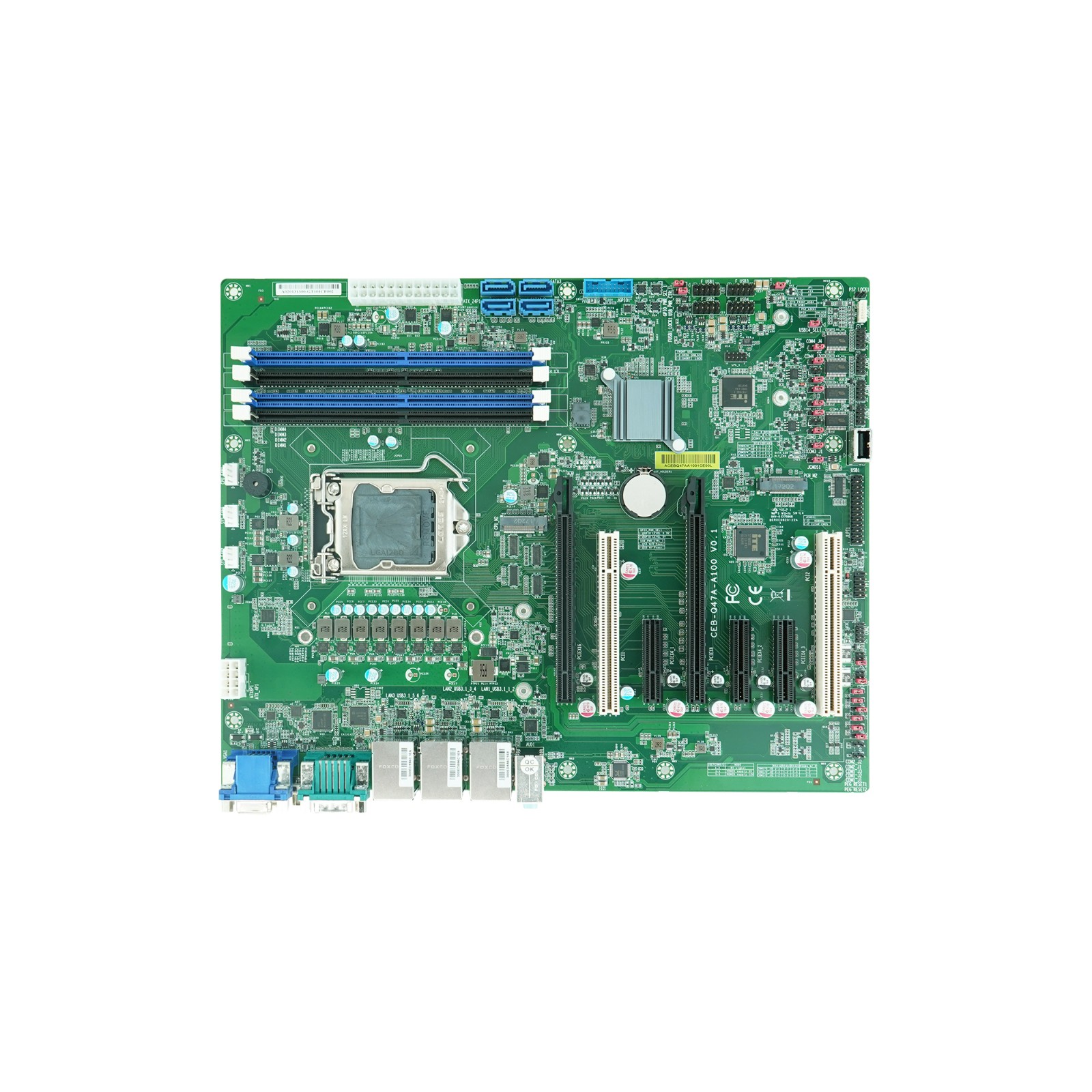

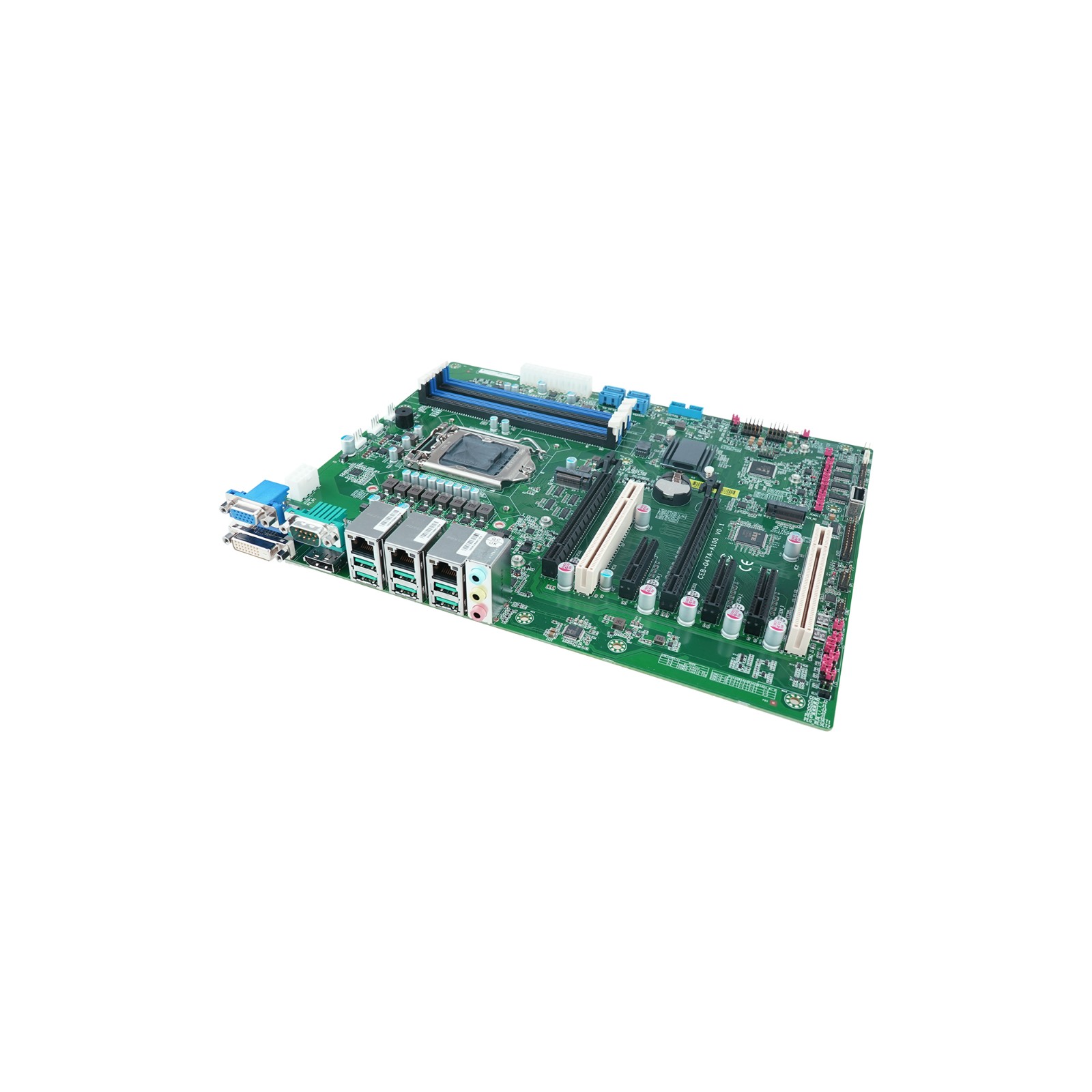

ATX工業主板 CEB-Q47A-A100

Intel^?10/11代酷睿 i9/i7/i5/i3/奔騰^?/賽揚^?處理器, 功耗最高支援到125W, 支持intel vPro
雙通道4插槽 DDR4 2400/2666/2933MHz, 高達128GB
支持VGA, DVI-D, DP三屏顯示
支持三Intel GbEs, USB3.2 Gen1/2, 16位GPIO
支持4個SATA3.0, RAID0/1/5/10
支持2個RS232/422/485和2個RS232/485和2個RS232串聯端口, 5V/12V電壓輸出
海岸線USB端口支援USB SR Pro技術
2 x PCIe3.0 X16 (1 x 16 or 2 x 8link )和3個PCIe3.0 X4 (X4 link), 2個PCI, 1個M.2(SATA3.0/PCIe 3.0 x 4 ) 2242/2280, 1個M.2(PCIe3.0 x 4 NVMe)2242/2280 僅11th CPU支持

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

Intel? 10th/11th Gen Core? i9/i7/i5/i3/Pentium?/Celeron? Processor, LGA1200, TDP up to 125W

處理器 Processor	Intel^? 10th/11th Gen Core? i9/i7/i5/i3/Pentium^?/Celeron^? Processor, LGA1200, TDP up to 125W
芯片組 Chipset	Q470E
內存 Memory	4 x DDR4 2400/2666/2933 MHz U-DIMM Slot, up to 128GB
存儲 Storage	4 x SATA 3.0, 1 x M.2 (SATA3.0/PCIe 3.0 x 4) 2242/2280,1 x M.2( PCIe4.0 x 4 NVMe ) 2242/2280 only 11th CPU supported
顯示 Display	Intel^? UHD Graphics 630
網口 Ethernet	1 x Intel^? i219-LM GbE, 2 x Intel^? i211-AT (10/100/1000 Mbps)
音頻 Audio	Realtek^? ALC888S/ALC897 HD Audio codec, supports 5.1-channel
BIOS	AMI UEFI BIOS
外部接口 Rear I/O	1 x DVI-D: max resolution up to 1920 x 1200 @ 60Hz 1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x DP: max resolution up to 4096 x 2160 @ 60Hz 6 x USB3.2 Gen2 3 x RJ45 1 x RS232/422/485 (with auto flow control) 1 x Line-out, Line-in, Mic-in
內部接口 Internal I/O	1 x RS232/422/485 (with auto flow control) 2 x RS232/485 2 x RS232 8 x USB2.0 (1 x Type-A) 1 x 16 bit GPIO 4 x SATA3.0 1 x PS/2 (for Keyboard and Mouse) 1 x CPU_FAN 2 x SYS_FAN 1 x LPT 1 x FP(power button,power led,reset,HDD led)
擴展接口 Expansion	2 x PCIe3.0 X16(1 x 16 or 2 x 8link) 3 x PCIe3.0 X4(X4 link) 2 x PCI 1 x M.2 (SATA3.0/PCIe3.0 x 4 supported) 1 x M.2( PCIe4.0 x 4 NVMe ) 2242/2280 only 11th CPU supported
信賴平臺模塊 TPM	Nuvoton TPM2.0 (optional, need MOQ）
環境 Environment	操作溫度Operation temp: 0℃~60℃ 存儲溫度Storage temp: -40℃~85℃ 操作濕度Operation hum: 5%~90%, 非凝結 Non-condensing 存儲濕度Storage hum: 5%~95%, 非凝結 Non-condensing
電源輸入 Power Input	ATX
尺寸 Dimensions	304.8 x 244 mm (12" x 9.6")
操作系統 OS	Windows 10, Linux
看門狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
