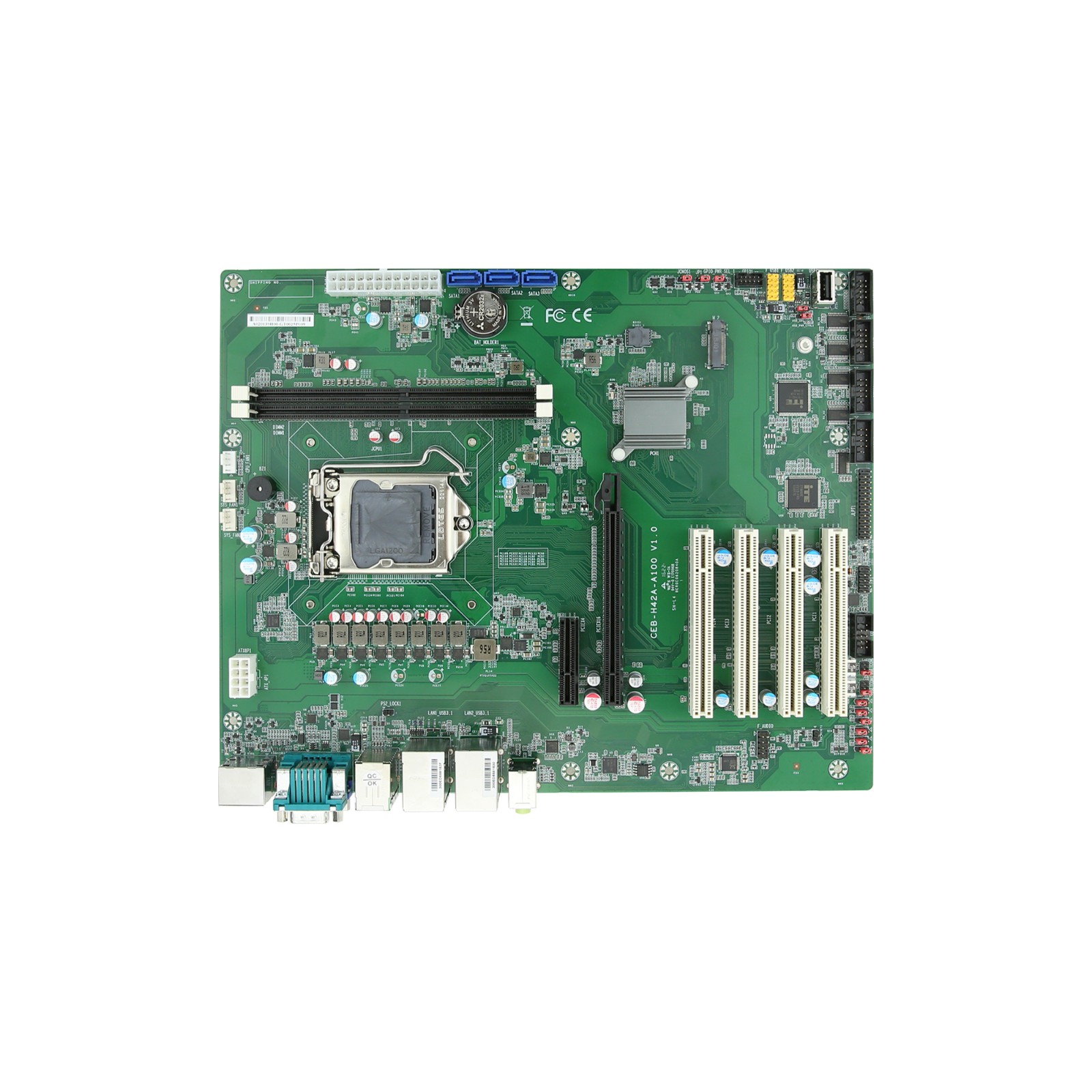

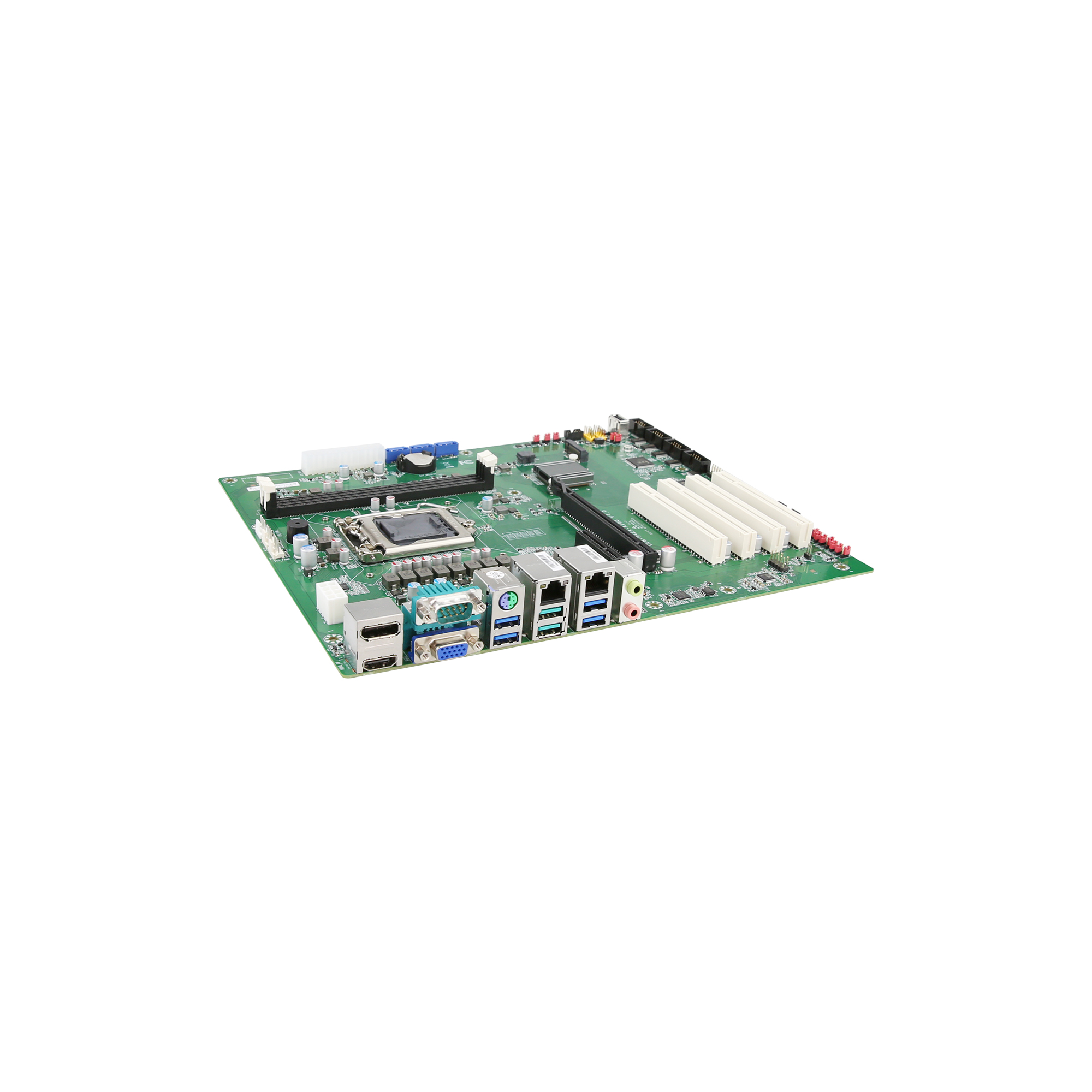

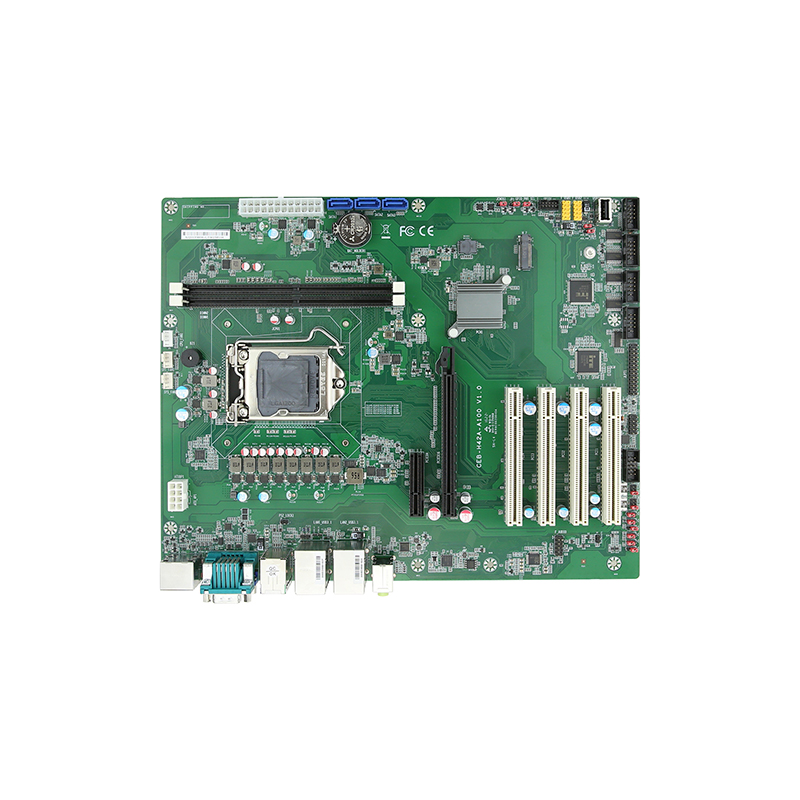

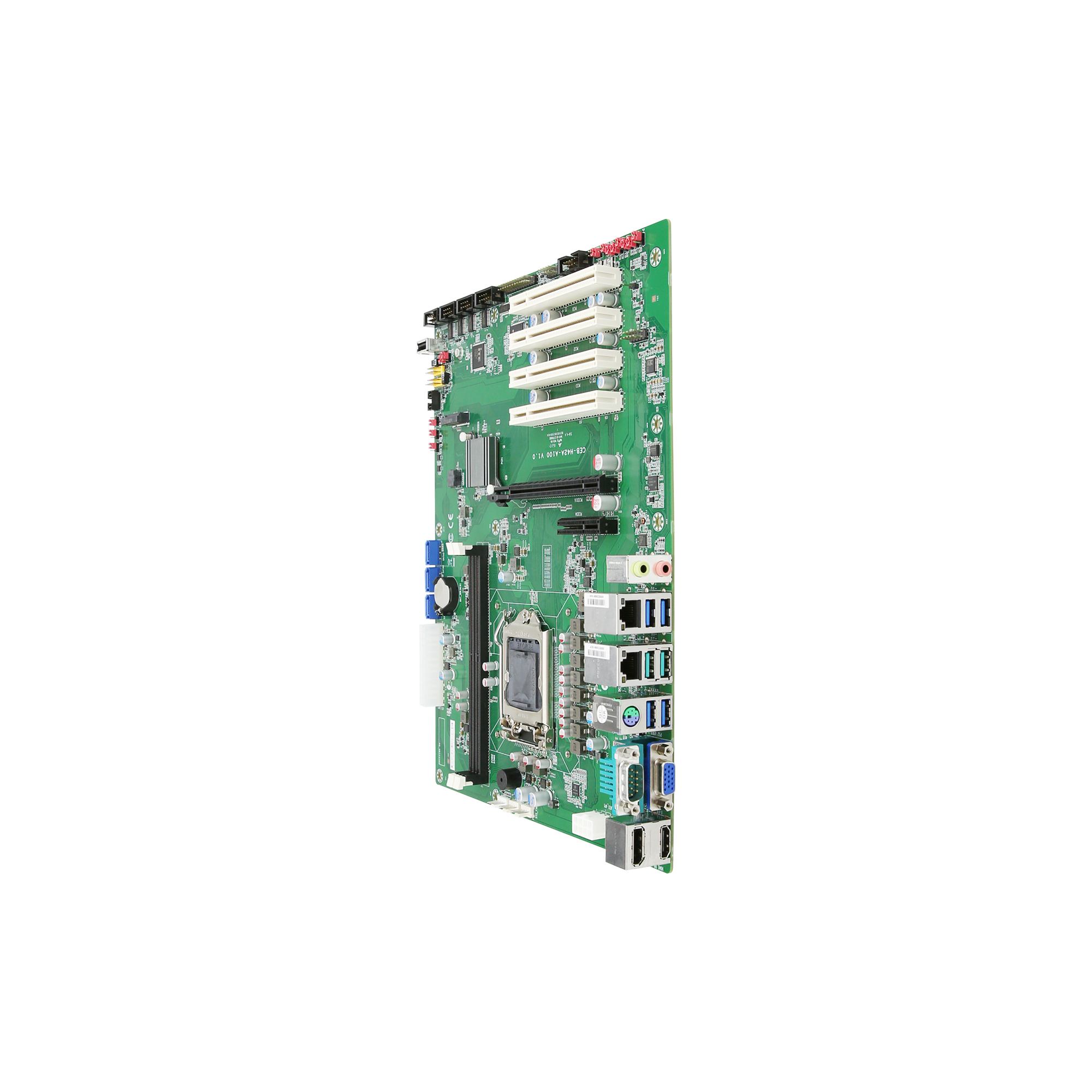

ATX工業主板 CEB-H42A-A100

Intel^?10/11代酷睿 i9/i7/i5/i3/奔騰^?/賽揚^?處理器, 功耗最高支援到125W
雙通道2插槽 DDR4 2400/2666/2933MHz, 高達64GB
支持VGA, HDMI, DP雙屏異顯
支持兩Intel GbEs, USB3.2 Gen1, 8位GPIO
支持3個SATA3.0
支持2個RS232/422/485(支持5V/12V電壓輸出)和4個RS232串聯端口
1 x PCIe3.0 X16 ( X16link )和1個PCIe3.0 X4 (X4 link), 4個PCI, 1個M.2(SATA3.0 )

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

Intel? 10th/11th Gen Core ? i9/i7/i5/i3/Pentium?/Celeron? Processor, LGA1200, TDP up to 125W

處理器 Processor	Intel^? 10th/11th Gen Core ? i9/i7/i5/i3/Pentium^?/Celeron^? Processor, LGA1200, TDP up to 125W
芯片組 Chipset	H420E
內存 Memory	2 x DDR4 2400/2666/2933 MHz U-DIMM Slot, up to 64GB
存儲 Storage	3 x SATA 3.0, 1 x M.2 (SATA3.0)
顯示 Display	Intel^? UHD Graphics 630
網口 Ethernet	1 x Intel^? i219-LM GbE, 1 x Intel^? i225-LM/i226-V (10/100/1000/2500 Mbps)
音頻 Audio	Realtek^? ALC888S/ALC897 HD Audio codec, supports 5.1-channel
BIOS	AMI UEFI BIOS

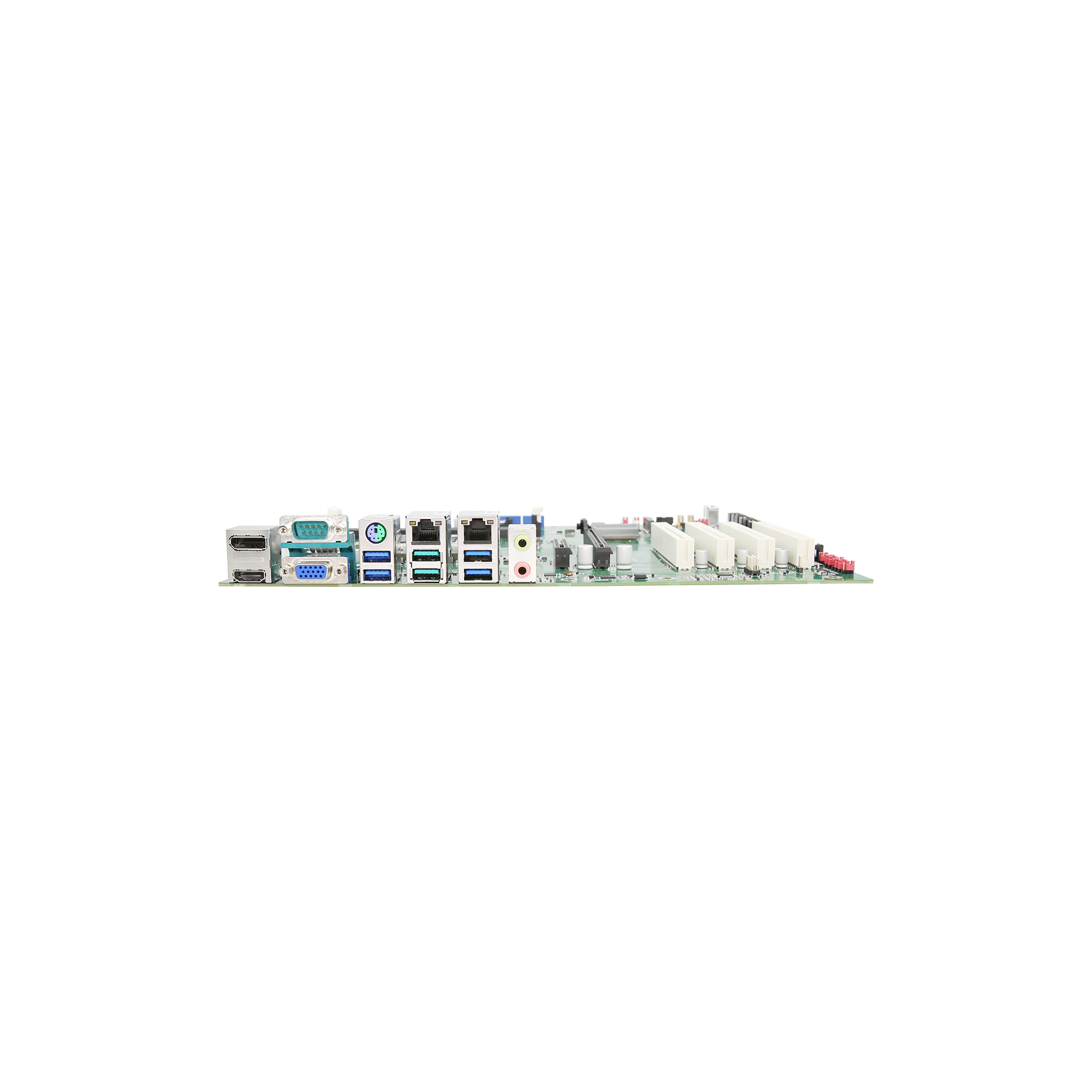

外部接口 Rear I/O	1 x HDMI: max resolution up to 3840*2160 @ 60Hz 1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x DP++: max resolution up to 4096 x 2304 @ 60Hz 1 x PS/2(Mini-DIN-6) 6 x USB3.2 Gen1 2 x RJ45 1 x RS232/422/485(with auto flow control) 1 x Line-out, Mic-in
內部接口 Internal I/O	1 x RS232/422/485(with auto flow control) 4 x RS232 4 x USB2.0 (Type-A sha re USB signal with one USB2.0) 1 x 8 bit GPIO 3 x SATA3.0 1 x CPU_FAN 2 x SYS_FAN 1 x LPT 1 x FP(power button, power led, reset, HDD led) 1 x Front Audio(Line-out, Mic-in)
擴展接口 Expansion	1 x PCIe3.0 X16 (X16link) 1 x PCIe3.0 X4 (X4 link) 4 x PCI 1 x M.2 (SATA3.0)
信賴平臺模塊 TPM	Nuvoton TPM2.0 (optional, need MOQ)
環境 Environment	操作溫度Operation temp: 0℃ ~60℃ 存儲溫度Storage temp: -40℃ ~85℃ 操作濕度Operation hum: 5%~90%, 非凝結 non-coagulation 存儲濕度Storage hum: 5%~95%, 非凝結 non-coagulation
電源輸入 Power Input	ATX
尺寸 Dimensions	304.8 x 244 mm (12" x 9.6")
操作系統 OS	Windows 10 64Bit, Linux
看門狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
