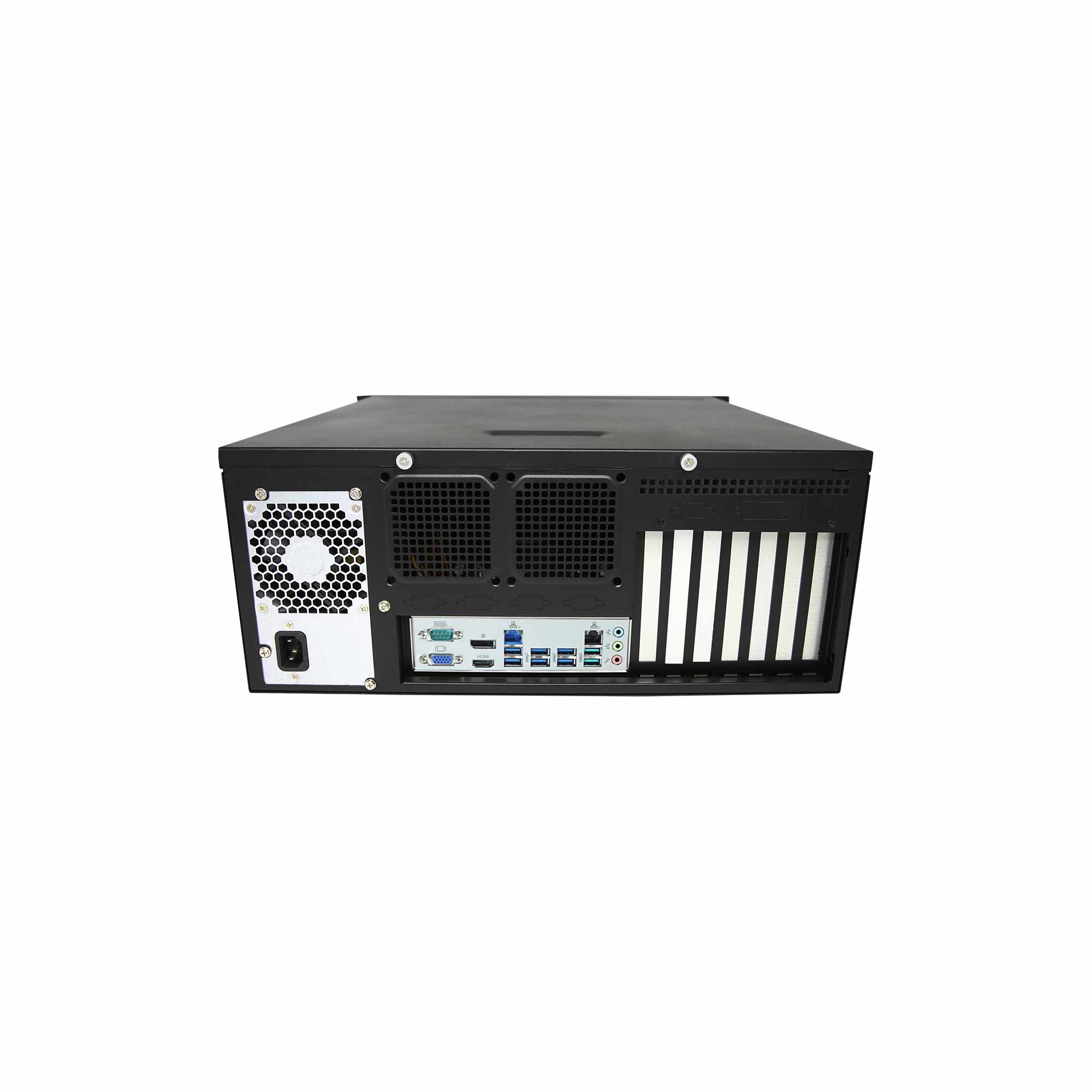

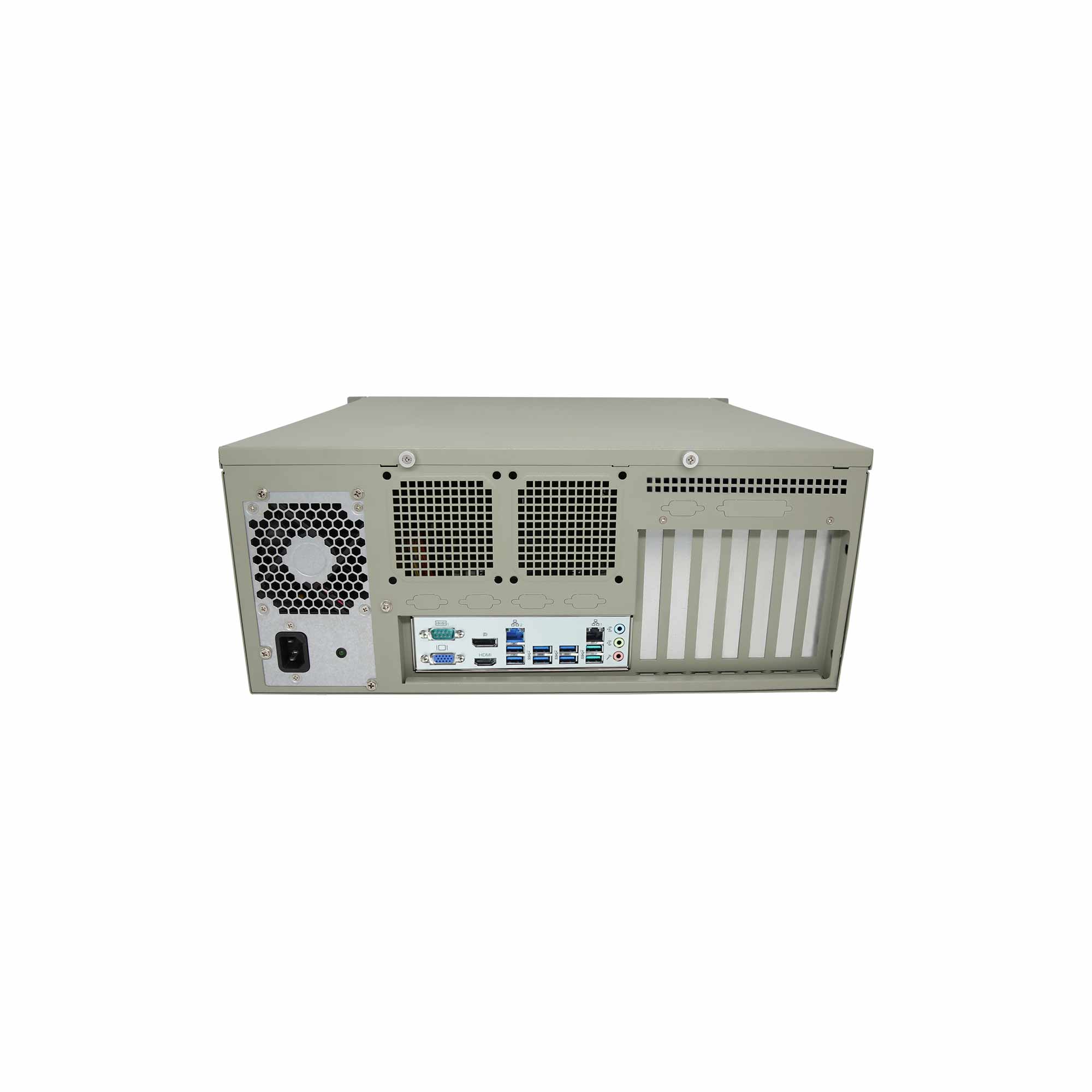

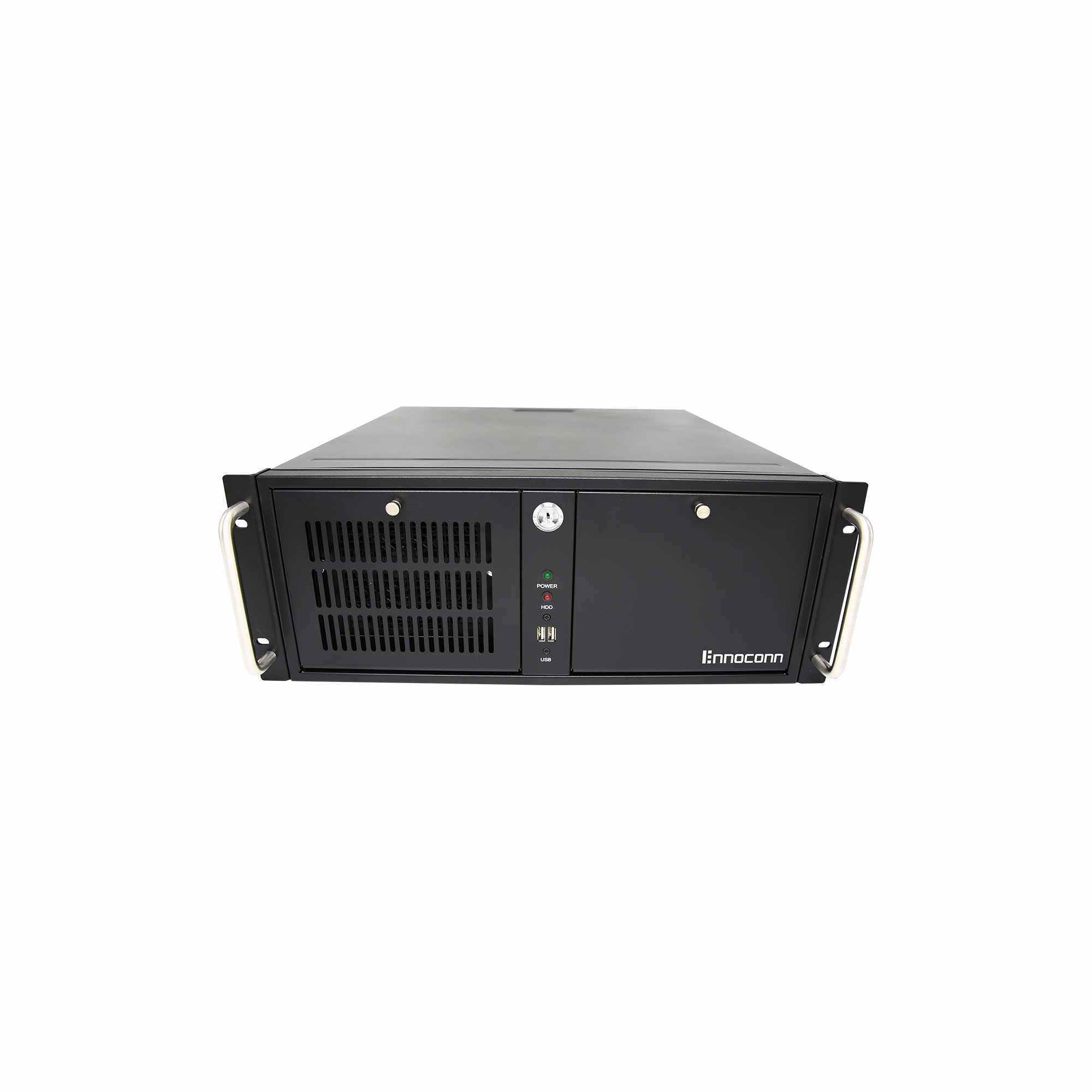

4U工控機 CEFS-RA21-R68A-4U5

Intel^?12/13代酷睿 i9/i7/i5/i3/奔騰^?/賽揚^?處理器, 功耗最高支援到125W, 支持intel vPro
雙通道4插槽 DDR5 ECC/Non-ECC 3600/4000/4400MHz, 高達128GB
支持VGA, HDMI2.0, DP++三屏顯示
支持雙Intel GbEs, USB3.2 Gen1/2, 8位GPIO
內置PCI,PCIe插槽，支持多種模塊擴展
抗震動磁盤架設計，可支持1個5.25寸光驅、2個2.5"SSD、3個3.5"HDD硬盤
前部可訪問 USB接口，更易于數據傳輸
海岸線上的USB端口支持Ennoconn USB SR Pro

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

4U, Intel^?12/13代酷睿 i9/i7/i5/i3/奔騰^?/賽揚^?處理器, 功耗最高支援到125W, 支持intel vPro

系統 System

處理器 Processor	Intel^? 12th/13th Gen Core ? i9/i7/i5/i3/Pentium^?/Celeron^? Processor, LGA1700,TDP up to 125W
芯片組 Chipset	R680E
內存 Memory	4 x DDR5 ECC/Non-ECC 3600/4000/4400 MHz U-DIMM Slot, up to 128GB
圖形 Graphics	Intel^? UHD Graphics 770
存儲 Storage	4 x SATA 3.0, 1 x M.2 (PCIe3.0 X4 NVMe/SATA3.0) 2242/2280,1 x M.2( PCIe4.0 X4 NVMe ) 2242/2280
操作系統 OS	Windows 10 64bit, Linux
看門狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
信賴平臺模塊 TPM	Nuvoton TPM2.0

外部接口 External I/O

網口 Ethernet	1 x Intel^? i219-LM GbE, 1 x Intel^?I226-V co-lay I225-LM (10/100/1000/2500 Mbps)
顯示 Video	1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x HDMI2.0: max resolution up to 4096 x 2160 @ 60Hz 1 x DP++: max resolution up to 4096x2304 @ 60Hz
音頻 Audio	1 x Line-out, Line-in, Mic-in
串口 COM	1 x RS232/422/485 (with auto flow control)
USB	8 x USB3.2 Gen2, 2 x USB2.0
按鈕 Button	1 x Power Button, 1 x Reset Button
指示燈 LED	1 x Power LED, 1 x HDD LED

內部接口 Internal I/O

擴展接口 Expansion	2 x PCIe4.0 X16 ( 1 x 16 or 2 x 8 link), 2 x PCIe4.0 X4 (X4 link),2 x PCIe3.0 X4 (X4 link), 1 x PCI
風扇 FAN	1 x CPU Fan, 2 x System Fan
USB	2 x USB3.2 Gen1, 2 x USB2.0 (2 x Type-A)
GPIO	1 x 8 bit GPIO
串口 COM	1 x RS232/422/485 (with auto flow control), 4 x RS232
LPT	1 x LPT
PS/2	1 x PS/2 (keyboard and mouse)

環境 Environmental

操作溫度 Operating Temp.	0℃ ~ 40℃
存儲溫度Storage Temp.	-20℃ ~ 60℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
隨機振動 Random Vibration	5~500Hz, 1Grms (HDD)operation
正弦振動 Sine Vibration	5~500Hz, 2G Non-operation
機械沖擊 Shock	10G @ 11ms operation
