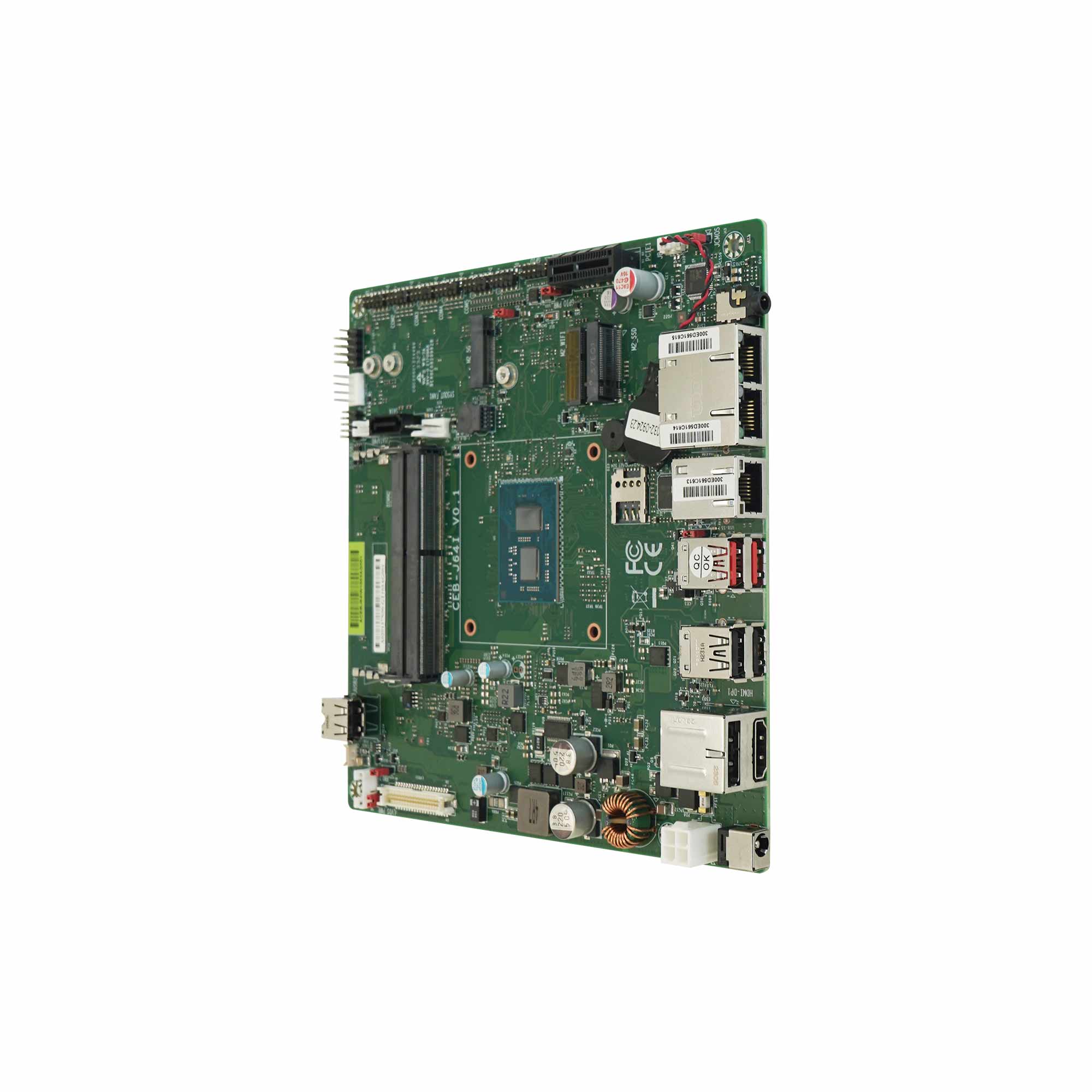

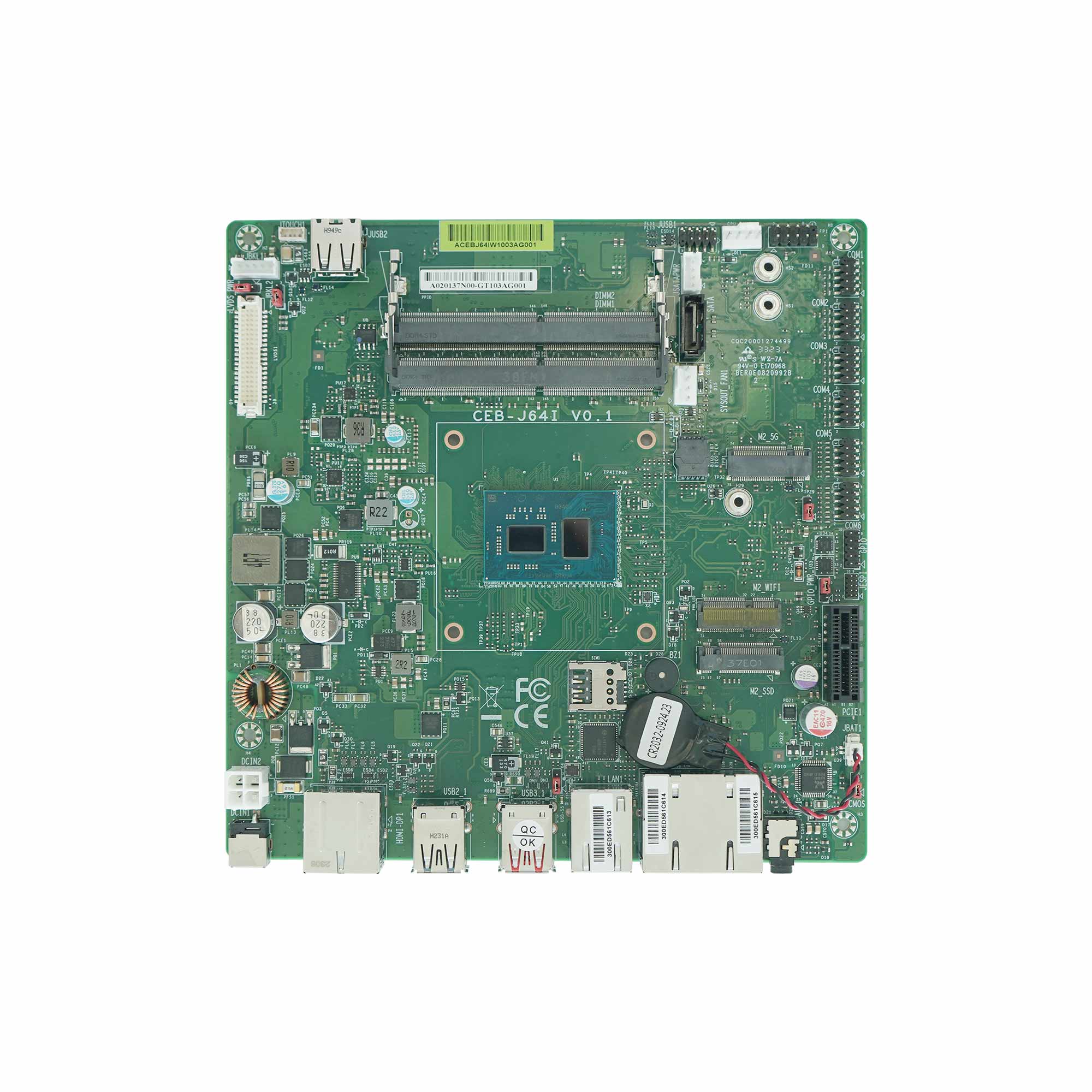

Mini-ITX工業主板 CEB-J64I-W10X

Intel^? Celeron^? Processor J Series 4核 J6412 2.0GHz(up to 2.60 GHz), TDP 10W
支持2個DDR4 SO-DIMM卡槽, 內存最高可達32GB
支持PCIe X1 (Gen2）, M.2 擴展
寬壓設計, 支持12-24V的 DC-IN 電壓輸入
支持1x Intel^? 210 AT(LAN1) （10/100/1000 Mbps)，2 x Intel^? 226V colay 225V (LAN2&LAN3) (10/100/1000 /2500Mbps)
支持1 x 8bit GPIO
支持8 x USB（2 x USB3.1 Gen2，6 x USB2.0）, 6 x COM (4 x RS232/422/485, 2 x RS232)

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

Intel? Celeron? Processor J Series 4核 J6412 2.0GHz(up to 2.60 GHz), TDP 10W

處理器 Processor	Intel^? Celeron^? Processor J Series J6412 quad-cord 2.0GHz (up to 2.60 GHz), TDP 10W
內存 Memory	2 x DDR4 3200MHz SO-DIMM Slot, up to 32GB
存儲 Storage	1 x SATA3.0, 1 x M.2 2242 M Key (SATA)
顯示 Display	Intel^? UHD Graphics for 10th Gen Intel^? Processors
網口 Ethernet	1 x Intel^? 210 AT(10/100/1000 Mbps), 2 x Intel^? 226V colay 225V (LAN2&LAN3) (10/100/1000/2500 Mbps)
音頻 Audio	Realtek^? ALC888S/ALC897 HD Audio codec, supports 5.1-channel
BIOS	AMI UEFI BIOS

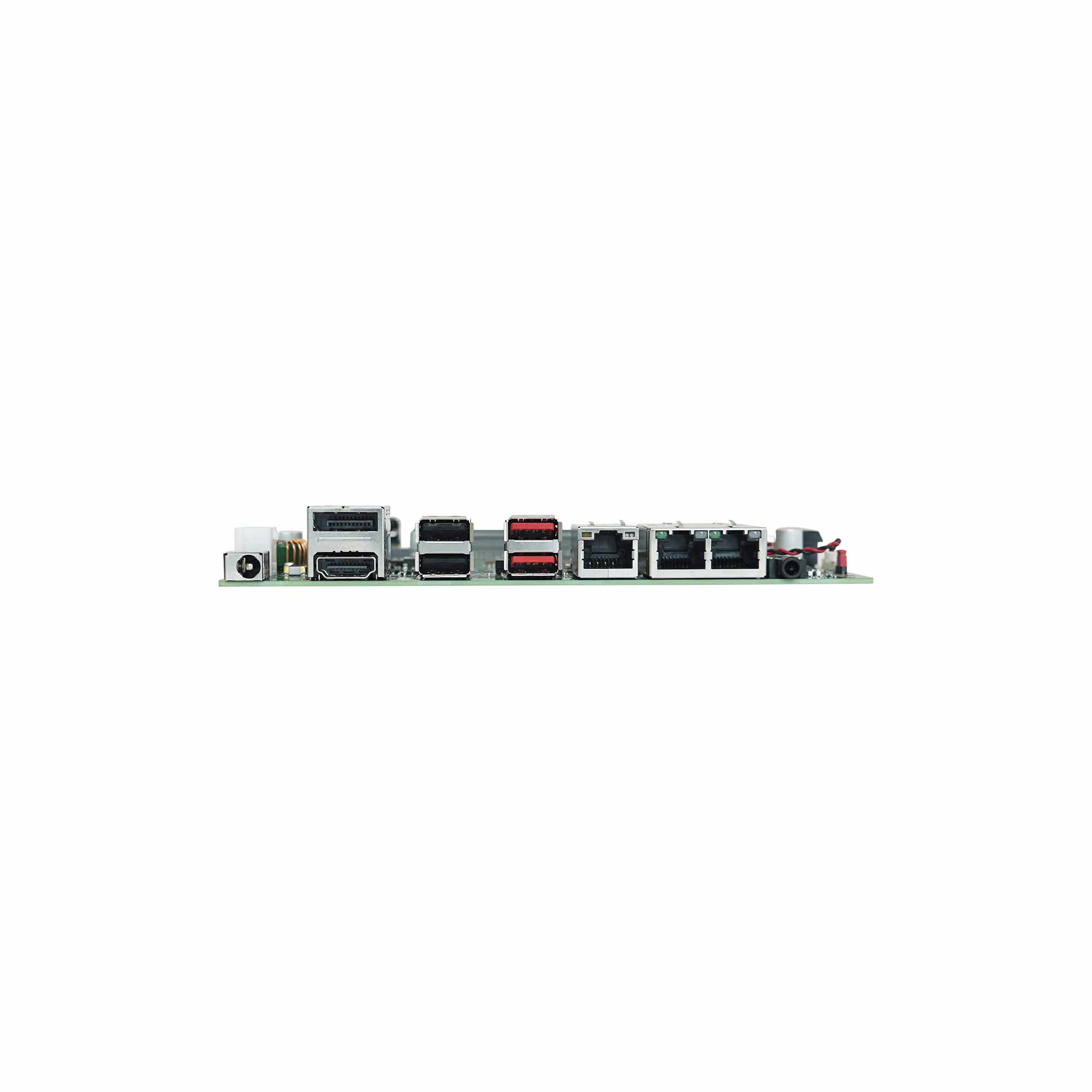

外部接口 Rear I/O	1 x DP1.4a, up to 4096 x 2160 @60Hz 1 x HDMI 2.0, up to 4096 x 2304 @60Hz 2 x USB3.1 Gen2(10Gbps)(支持USB SR Pr o技術), 2 x USB2.0 3 x RJ45 1 x Line out&Mic in(2 in 1 audio combo Jack) 1 x DC-IN Jack
內部接口 Internal I/O	1 x LVDS: Dual Channel 18/24-bit, up to 1920 x 1200@60Hz 1 x eDP: up to 4096x2160@60Hz (BOM option with LVDS) 4 x RS232/422/485 (with auto flow control), 2 x RS232 4 x USB2.0(1xPin header 25, 1xPin header 14(Touch), 1 x Type-A） 1 x 8bit GPIO 1 x SATA3.0 1 x CPU_FAN,1 x SYS_FAN 1 x FP(power button, power led, reset, HDD led) 1 x 4-pin (2x2) power connector
擴展接口 Expansion	1 x M.2 3042/3052 B Key (PCIe3.0 X1/USB2.0) for 5G module 1 x M.2 2230 E Key (PCIe3.0 X1/USB2.0) for WiFi/BT module 1 x M.2 2242 M key(SATA3.0) for SATA SSD 1 x Nano SIM socket（connected toM.2 B Key） 1 x PCIe3.0 X1
環境 Environment	操作溫度 Operation Temp.: 0℃ ~ 60℃ 存儲溫度 Storage Temp.: -40℃ ~ 85℃ 操作濕度 Operation Humidity: 5% ~ 95%, 非凝結狀態 Non-condensing 存儲濕度 Storage Humidity: 5% ~ 95%, 非凝結狀態 Non-condensing
電源輸入 Power Input	寬壓12~24V DC-IN
尺寸 Dimensions	170 x 170 mm (6.75" x 6.75")
操作系統 OS	Windows10, Linux
看門狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
