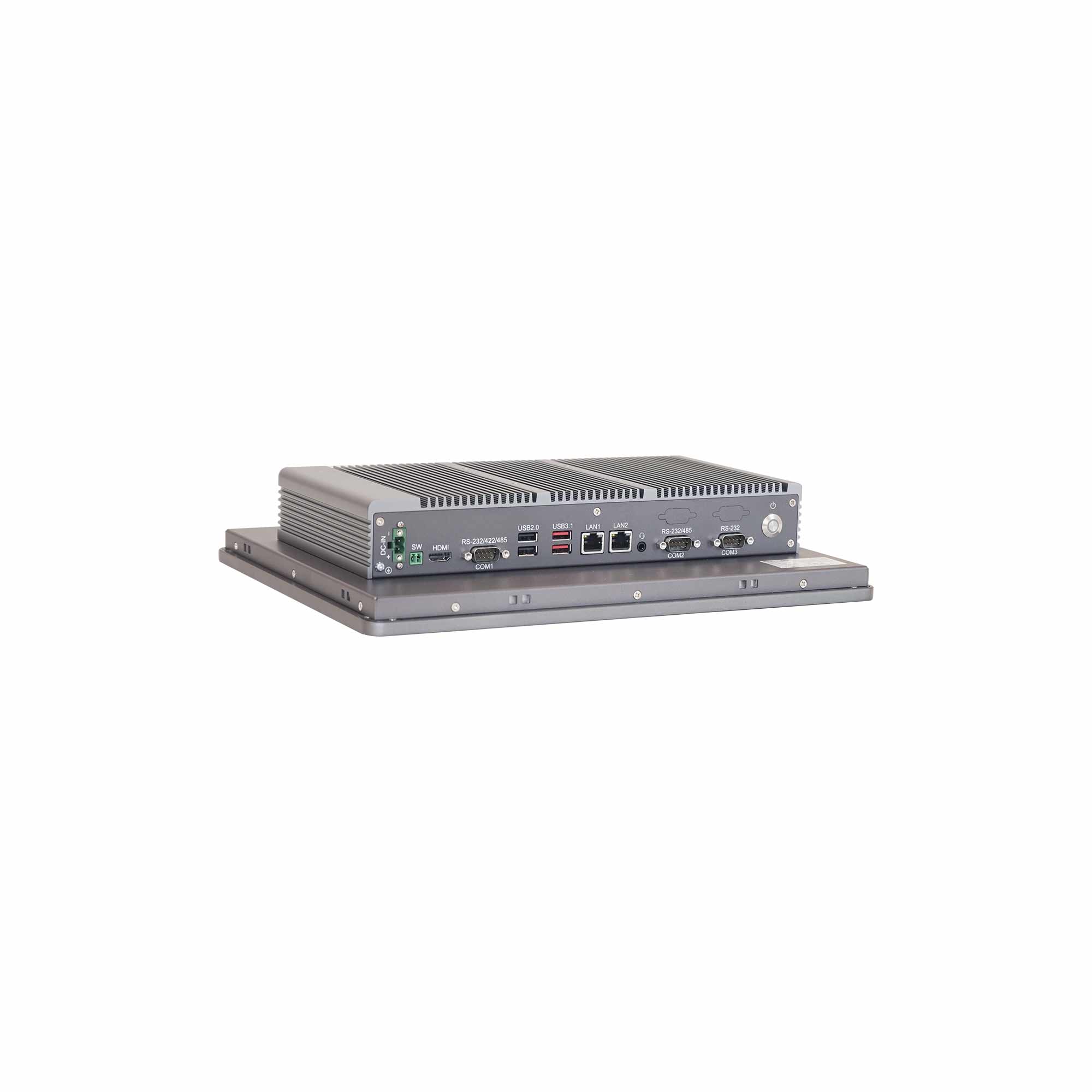

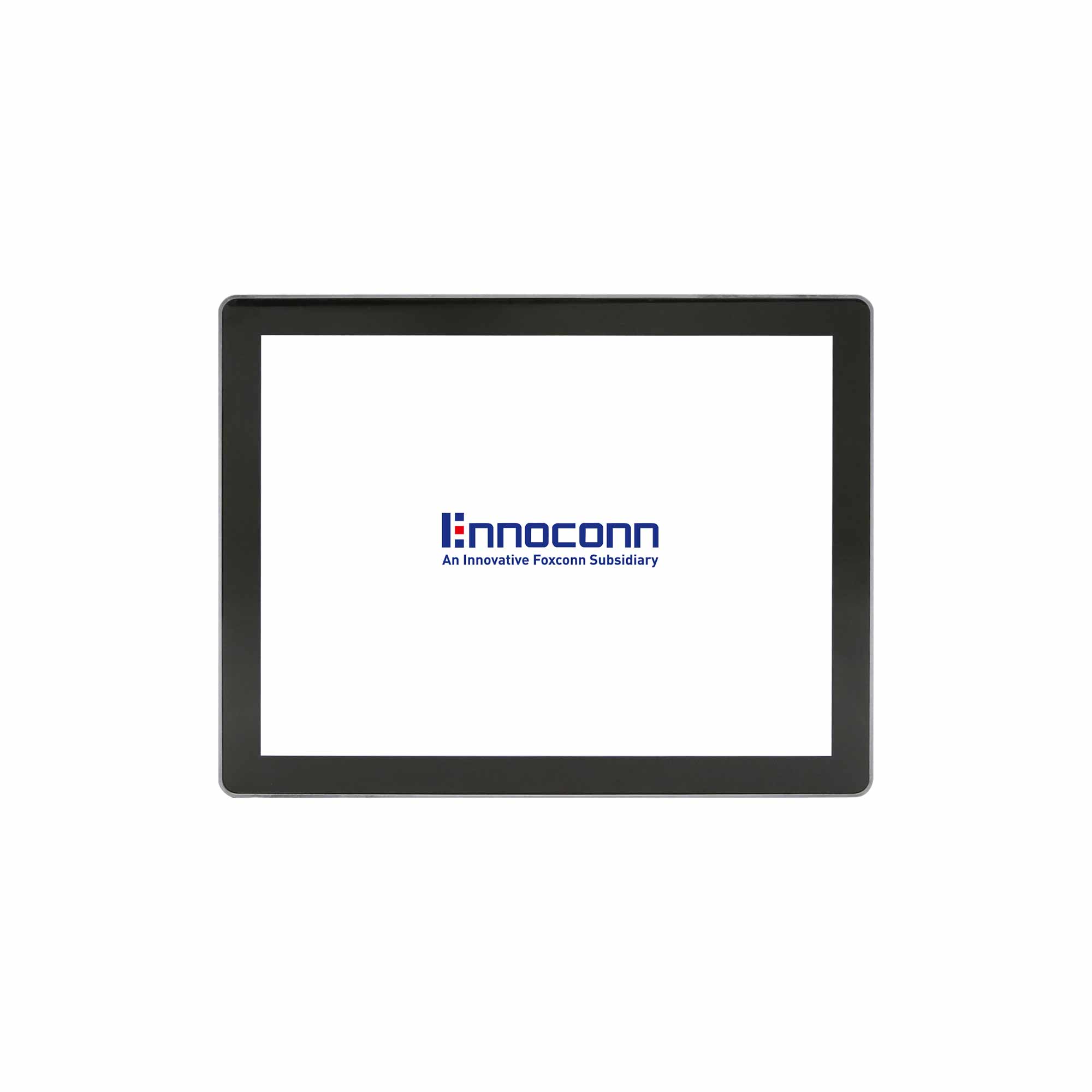

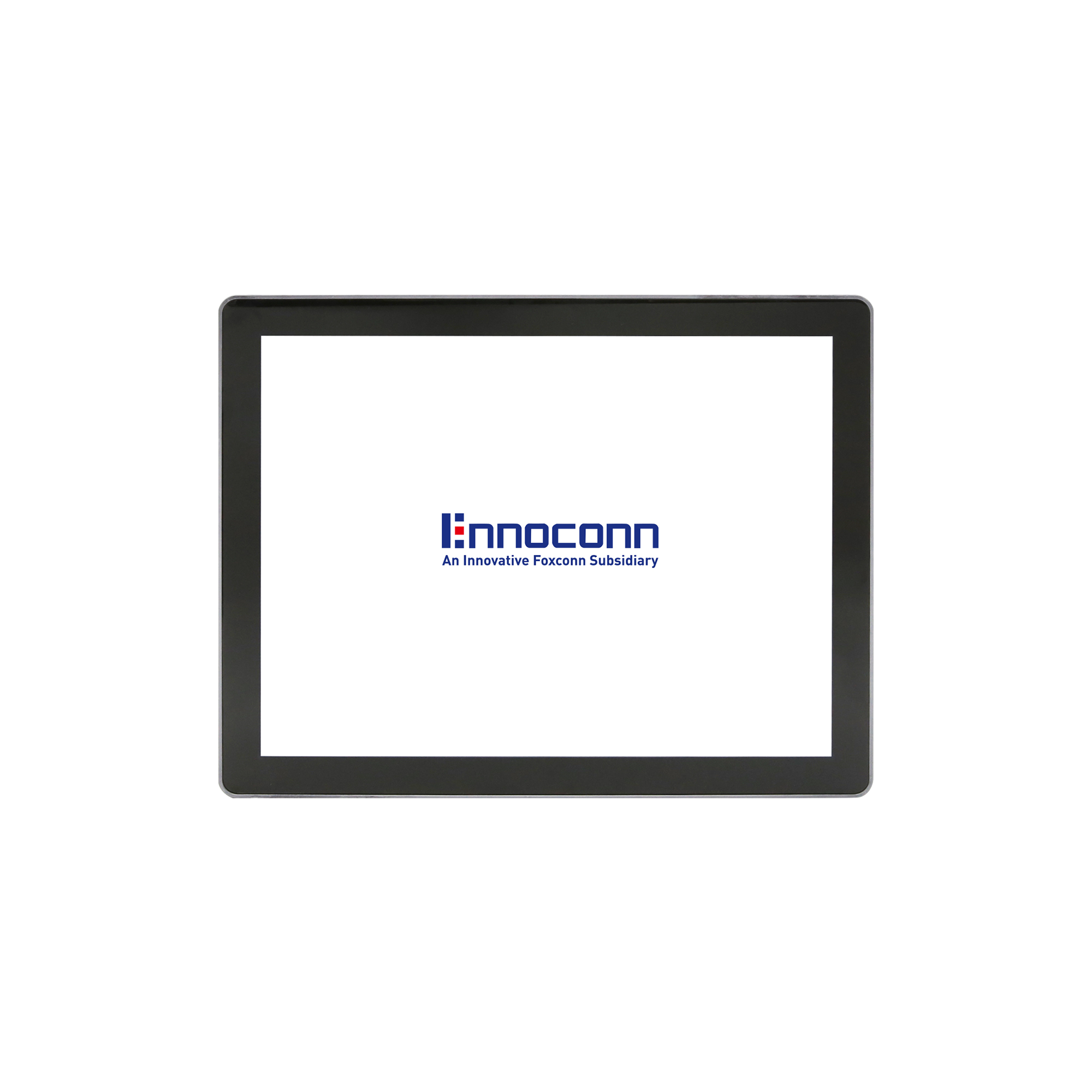

15寸工業平板電腦 CEP-15RS-Q37E

Intel^? Coffee lake處理器
15寸 LED背光顯示屏，前面框支持IP66防護等級
鋁合金的機身使其輕薄、堅固穩定、散熱效果更好
工業等級五線全平面電阻觸摸屏
支持雙千兆網口
支持WiFi/BT/4G/5G(可選）
寬壓12~36V DC-IN, 可鎖附鳳凰端子接口
支持Reset 硬重啟
產品外殼接地保護
內置1 x 2.5寸HDD/SSD可擴充支架
支持標準VESA及嵌入式安裝方式
支持PCIe X16/PCIe X8/PCIe X4/PCIe X1擴展插槽

產品介紹
詳細參數
產品型錄
驅動程序

產品介紹：

工業無風扇觸摸一體機，采用15寸全平面五線電阻屏，Intel? Skylake Core? i3-8100T/i5-8500T/i7-8700T處理器

系統 System

處理器 Processor	Intel Celeron G4900T (2.9GHz)-2 cores/2 Cache Intel^? Core ? i3-8100T Processor (3.1GHz)-4 cores/4 Cache Intel^? Core ? i5-8500T Processor (2.1GHz, up to 3.5GHz)-6cores/6 Cache Intel^? Core ? i7-8700T Processor (2.4GHz, up to 4.0GHz)-6 cores/12 Cache
內存 Memory	2 x DDR4 2400/2666 MHz SO-DIMM, up to 32 GB
存儲 Storage	1 x 2.5" SATA3.0 HDD/SSD 1 x M.2 2280 SSD slot
圖形 Graphics	Intel^? UHD Graphics 610/630
操作系統 OS	Windows 10, Linux
看門狗定時器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

顯示屏 Display

尺寸 Size	15 inches
分辨率 Resolution	1024(H) x 768(V)
屏幕寬高比 Ratio	4:3
亮度 Brightness	300 nits
可視角 Viewing Angle	80° (T)/80° (B) 80° (L)/80° (R)
對比度 Contrast Ratio	800
背光 Backlight	LED Backlight
背光壽命 Backlight Lifetime	30000Hrs

觸摸屏 Touchscreen

觸摸屏 Touch Type	全平面五線電阻屏 5-Wire Resistive Touch
觸擊 Touch	35,000,000 times

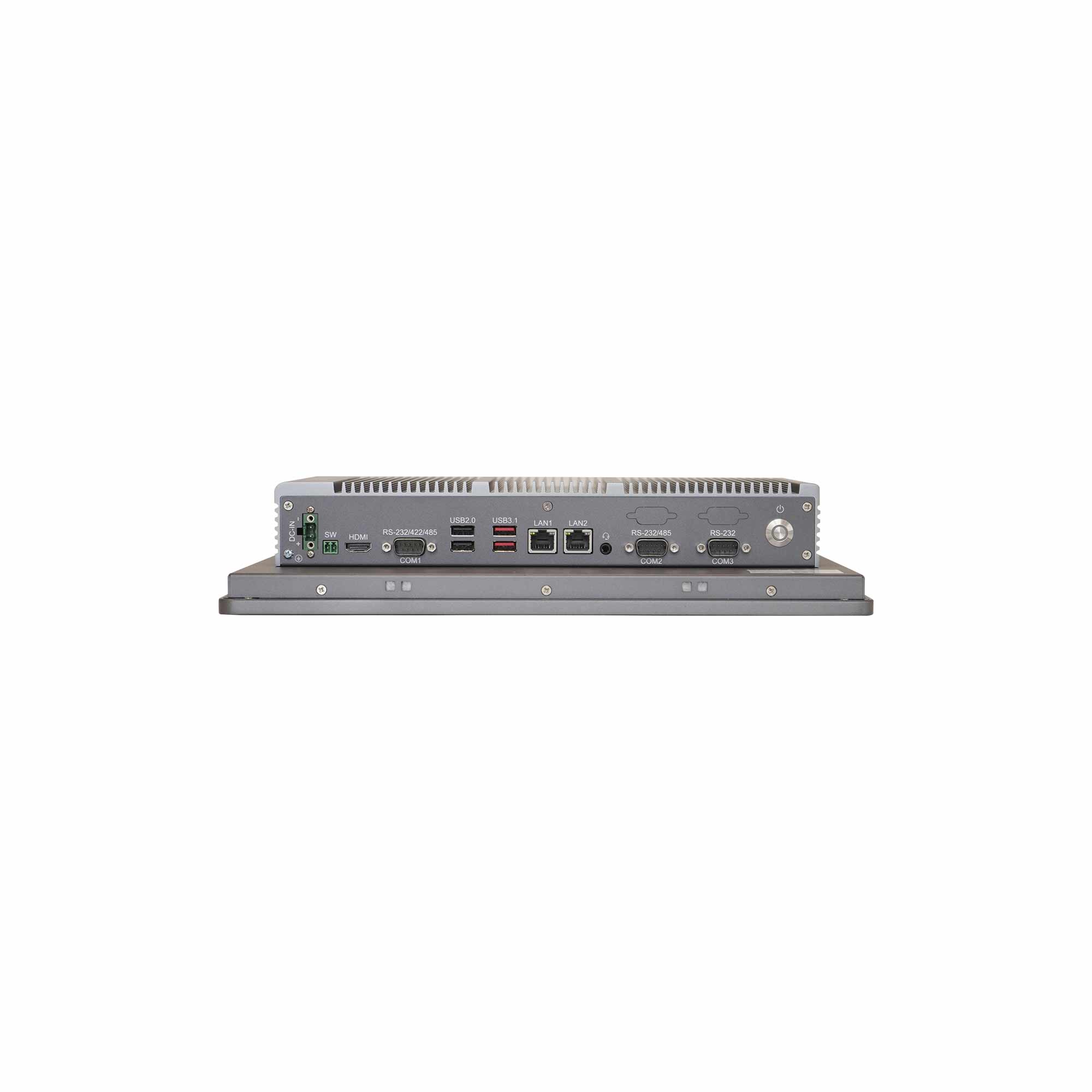

外部接口 External I/O

串口 COM	1 x RS232/RS422/RS485(COM1) 1x RS232
O-Door	2COM/2USB/1 GPIO optional
USB	4 x USB 3.0
網口 Ethernet	1 x RJ45 Intel^? I211AT (10/100/1000 Mbps) 1 x RJ45 Intel^? I219-LM GbE (10/100/1000 Mbps)
顯示 Video	1 x HDMI (up to 4096 x 2304@24hz)
音頻 Audio	1 x Audio(Line-out&Mic-in 2 in 1), Realtek^? ALC888S-VD2-GR HD Audio codec 2 x Speaker 4Ω3W
重置Reset	1 x HW reset
開關按鍵Power bottom	1 x Power bottom W/LED ( System 上電 -LED OFF/Power ON-LED ON/Power OFF-LED OFF)
電源輸入 Power Input	1 x Power Connector (4P Phoenix)

內部接口 Internal I/O

擴展接口 Expansion

1 x PCIe X16 expansion Slot, PCIe Card dimension not larger than174.55mm(W)x111.15mm(H)x30.71mm(D) 1 x 9Pin (SATA LED/Power LED/OS reset) 1 x M.2 Key-B 3052slot(4G/5G supported) 1 x M.2 Key-E 2230 slot (WiFi +BT supported) 1 x SIM socket 2 x USB3.0 2 x USB2.0 2 x RS232

機構 Mechanical

前框 Front Panel	鋁 Aluminum
鋁擠 Heat-Sink	鋁 Aluminum
底板 Rear Cover	鐵 SECC
安裝方式 Mounting	Panel Mount, Wall and VESA-mount (100 x 100mm)
尺寸 Dimension	351.6(W) x 275.6(H) x84(D)mm
建議開孔尺寸Cut Out	341.4 x 265.4mm
重量 Weight	4.7kg

環境 Environmental

操作溫度 Operation Temp.	-10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD) 0℃ ~ 40℃ with 0.7 m/s air flow (HDD)
存儲溫度 Storage Temp.	-40℃ ~ 70℃
濕度 Relative Humidity	5% ~ 95%, 非凝結狀態 Non-condensing
隨機振動 Random Vibration	5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation
正弦振動 Sine Vibration	5~500Hz, 2G Non-operation
機械沖擊 Shock	10g 11ms operation, 30g 11ms Non-operation
前面板防護 Ingress Protection	Front panel IP66
