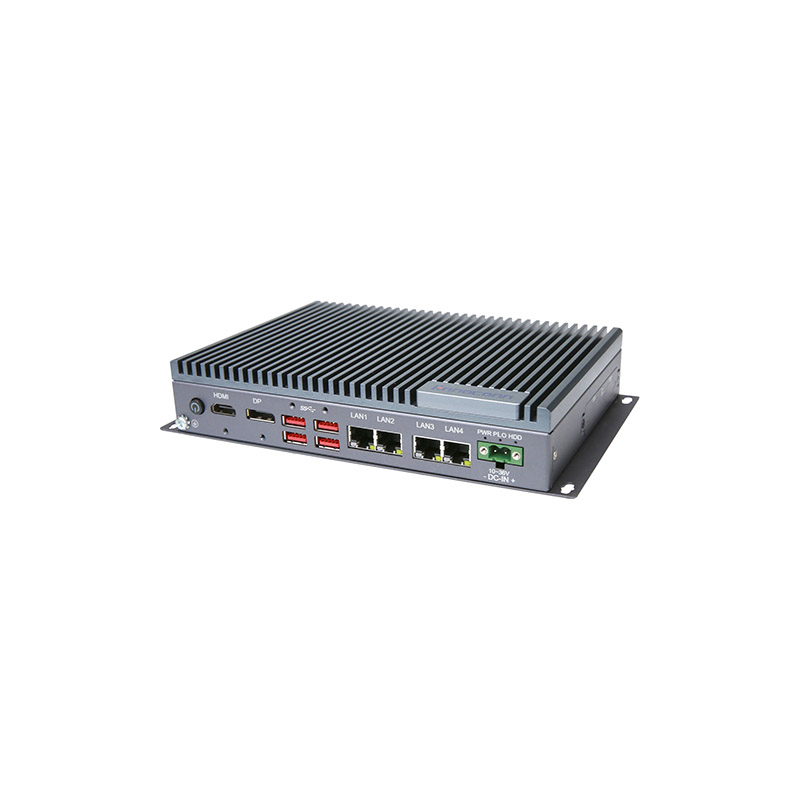

嵌入式工業電腦 CES-R814/R836-W44A

板載Intel^? 8th Gen. U Processors i3-8145UE/i5-8365UE/i7-8665UE CPU, 主頻最大可以達到2.2GHz

支持單通道DDR4 2133/2400 MHz SO-DIMM內存插槽，內存容量最大可達32GB

支持4個千兆網口

支持DP/HDMI 擴展同步于/異步顯示

內置2 x Mini-PCIe,1 x M.2 2242,1 x M.2 2230(CNVI)，1 x M.2 3042/3052 多種模塊擴展

10~36V寬壓設計，可鎖附DC-IN接口

產品介紹：

Intel? 8th Gen. U i3-8145UE/i5-8365UE/i7-8665UE CPU, TDP 15W, 4 x LAN, 4 x COM (up to 6 x COM), 6 x USB, 10-36V power input, fan-less system

外部接口 External I/O

網口 Ethernet	4 x RJ45, Intel^? 2 x i210 and 2 x i211 GbE (10/100/1000 Mbps)
顯示 Video	1 x HDMI: max resolution up to 4096x2304@24Hz 1 x DP: max resolution up to 4096x2304@60Hz
音頻 Audio	1 x Audio(Line-out&Mic-in 2 in 1) Realtek^? ALC888S HD Audio codec 1 x Built-in Speaker (optional)

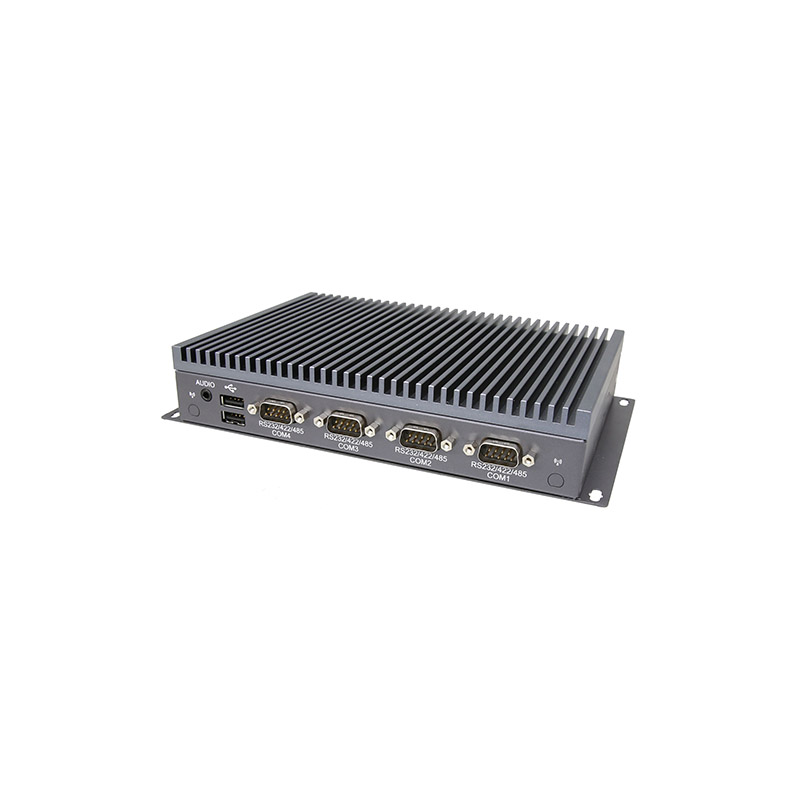

串口 COM	4 x RS232/422/485 auto-flow 2 x RS232 (optional by 3*3 pin-head)
USB	4 x USB 3.1 Gen2 2 x USB 2.0
GPIO	1 x 8bit programmable GPIO (optional)
按鈕 Button	1 x Power button (White for Power-on, Blink for Sleep mode,Off for Power-off)
指示燈 LED	1 x Power LED (Green for DC-in) 1 x HDD LED (Green blink for Data read or write) 1 x programmable LED (Green Default monitoring CPU temperature)

內部接口 Internal I/O

擴展接口 Expansion	1 x Mini-PCIe slot (PCIE/SATA/USB2.0 Singal Support) 1 x M.2 2230 Key-E slot (only supported CNVI Wifi module)
SIM 卡	1 x SIM Card socket for 3G/4G module

擴展模組 Extension module

Extension Module A (optional)	1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported) 1 x M.2 3042/3052 Key-B slot(5G communication module supported) 1 x EDP: max resolution up to 4096x2304@60Hz 1 x SIM socket for 5G module
Extension Module B (optional)	1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported) 1 x Built-in USB3.0 1 x EDP: max resolution up to 4096x2304@60Hz

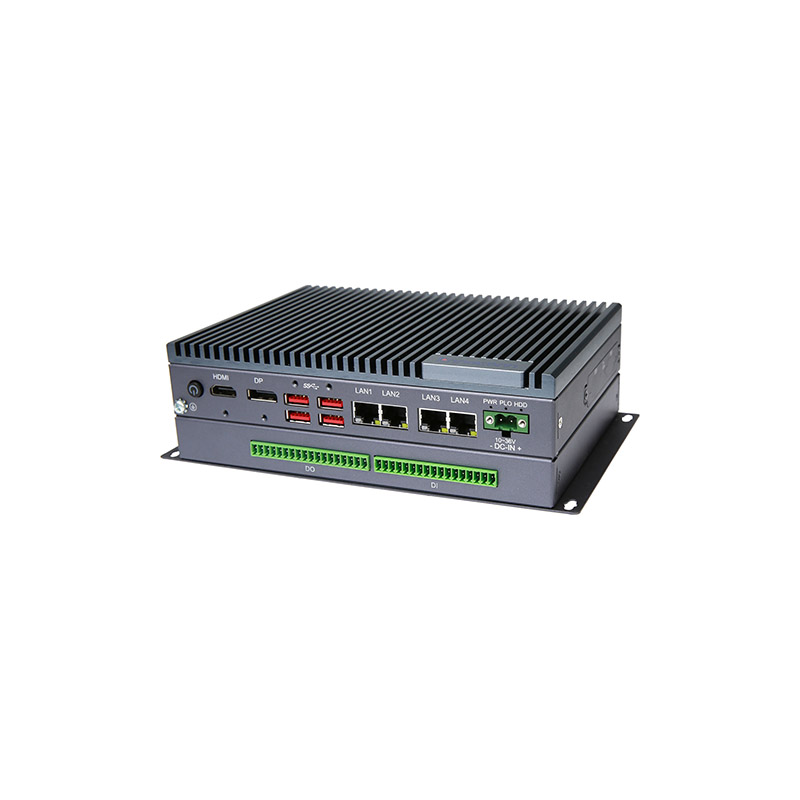

Extension Module C (optional)	1 x 16bit DI/O with optocoupler isolation DI 2500vrms DO 2500vrms, response time ≤2ms, Output Frequency≤500Hz Maximum driving capacity 100mA, NPN or PNP by optional

環境 Environmental

操作溫度 OperatingTemp.	-20℃ ~ 60℃(SSD), 0℃ ~ 40℃(HDD)
存儲溫度 Storage Temp.	-40℃ ~ 85℃
濕度Relative Humidity	5% ~ 95%, 非凝結狀態Non-condensing
振動 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
機械沖擊 Shock	Operation: 10G@11ms Non-operation: 30G@11ms

電源 Power

電源輸入 Power Input

10-36V DC, 2-pin phoenix connector

機構Mechanical

外觀 Housing	鋁合金 Aluminum Alloy
安裝方式 Mounting	Desk-Mount（桌面式） Wall-Mount（壁掛式） VESA-Mount (100 x 100mm)(optional)

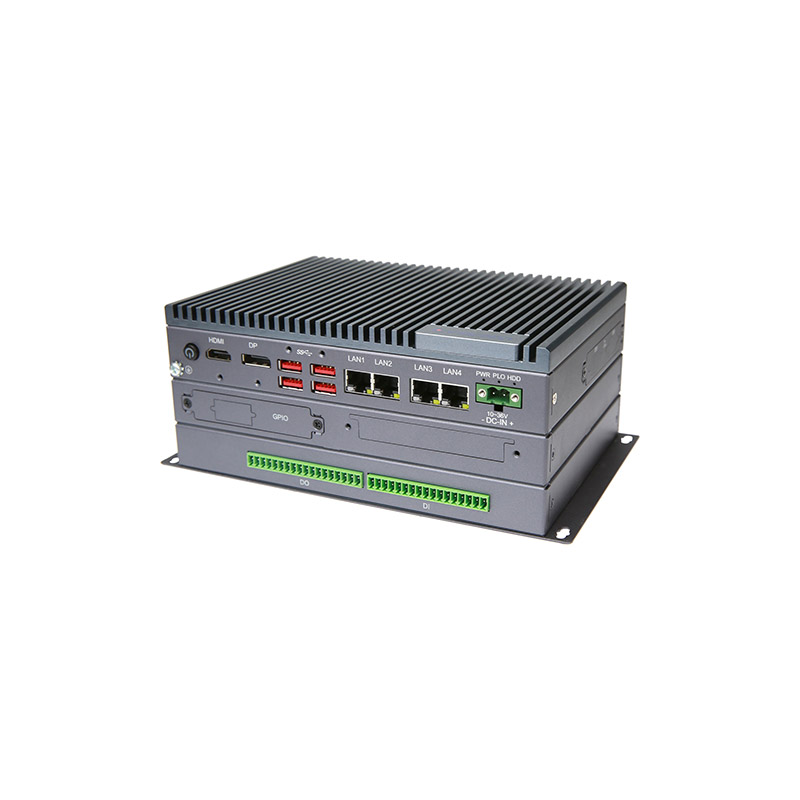

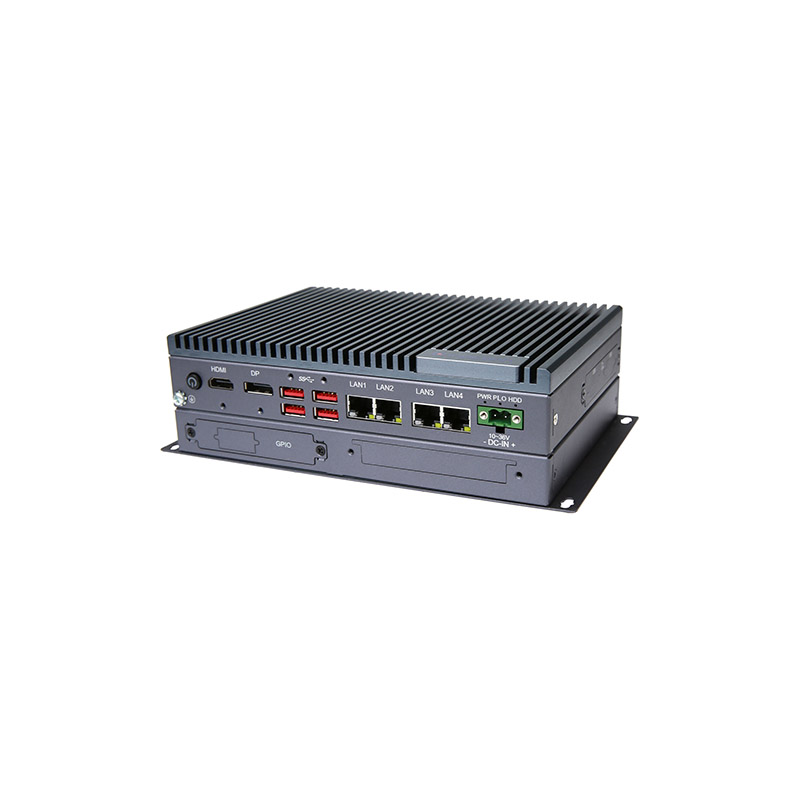

尺寸 Dimension	224 x 140 x 40 mm (基礎型) 224 x 140 x 65 mm (一層擴展) 224 x 140 x 85 mm (二層擴展)
重量 Weight	1.35kg

認證 Certification

安規認證 Safety Certification

CCC
